About the Monogram ZGP366NRSS
- 6 Sealed Dual-Flame Burners
- 6.2 cu. ft. Oven Capacity
- Reverse Air Convection
- Infrared Broil Burner
- Heavy-Duty Oven Racks
- LED Task Lights
- Star-K Certified
Brand:
Style:
Freestanding
Width:
35 7/8"
Height:
35 1/4"
Depth:
28 1/4"
Capacity:
6.2 Cu. Ft.
Burners:
6
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
The ZGP366 features one of the largest all-gas professional oven capacities and with the professional dual-burner bake system it combines Reverse-Air convection technology with an infrared broil and gas burner to provide superb baking results with fast preheating.
The infrared broil burner produces intense heat needed to sear meats to lock in juices and is thermostatically controlled to provide top browning when baking or convection baking.
Key Features
Authentic Professional appearance
- With premium-grade, 304 stainless steel with smoothly finished edges, large electronic control knobs and heavy duty handles
Sealed, dual-flame stacked burners
- Deliver a full spectrum of heat settings, from an ultra-low 140C F simmer to an intense 18,000 BTU
Largest all-gas professional oven capacity
Monogram Professional dual-burner bake system
- Combines Reverse-Air convection technology with an infrared broil and gas burner to provide superb baking results, with fast preheating
Infrared broil burner
- Produces intense heat needed to sear meats to lock in juices and is thermostatically controlled to provide top browning when baking or convection baking

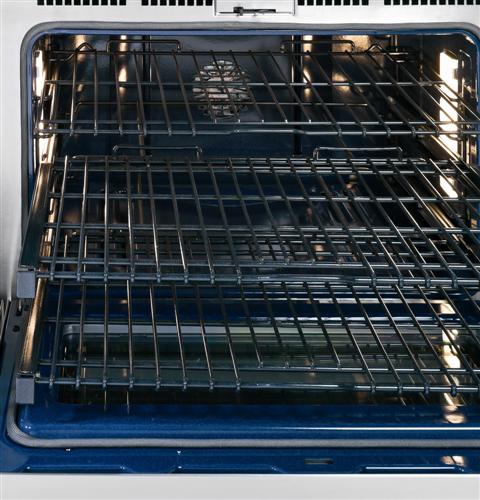

Heavy-duty oven racks
- Glide smoothly in and out on stainless steel ball bearings for easy access, and are designed to remain in the oven during the self-clean cycle
LED task lights
- Below the bullnose, provide a functional and theatrical touch
ZGP366NRSS Installation Instructions
Key Features

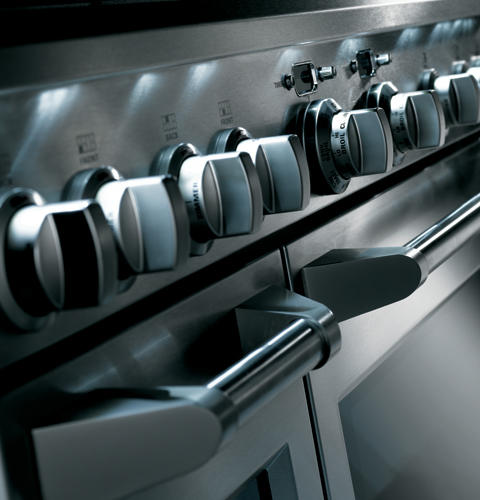

Authentic professional appearance
Stainless steel with smoothly finished edges, large electronic control knobs and heavy duty handles

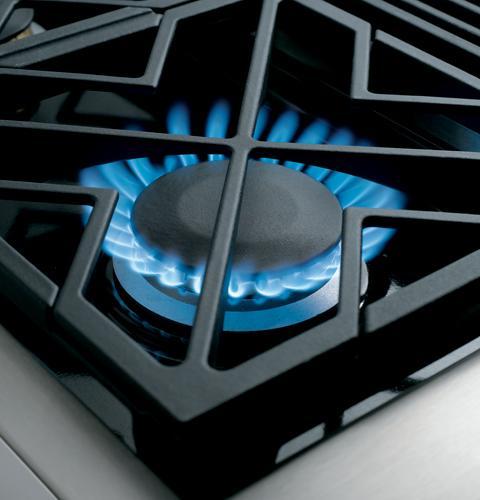

Sealed, dual-flame stacked burners
Deliver a full spectrum of heat settings, from an ultra-low 140 F simmer to an intense 18,000 BTU
Largest all-gas professional oven capacity available in the 36" professional gas range category
Caterer's oven uniquely sized to accommodate three full-sized sheet trays
Monogram professional dual-burner bake system
Combines reverse-air convection technology with an infrared broil and gas burner to provide superb baking results, with fast preheating

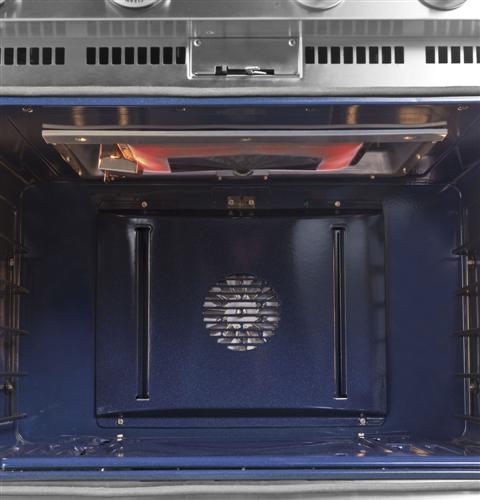

Infrared broil burner
Produces intense heat needed to sear meats to lock in juices and is thermostatically controlled to provide top browning when baking or convection baking
Heavy-duty oven racks
Glide smoothly in and out on stainless steel ball bearings for easy access, and are designed to remain in the oven during the self-clean cycle

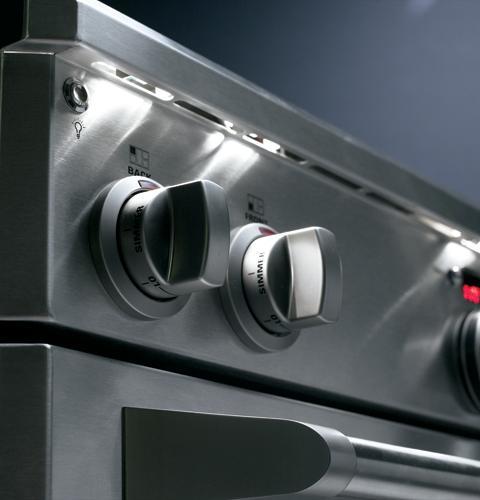

LED task lights
Below the bullnose, provide a functional and theatrical touch
Electronic ignition with automatic reignition
Ensures a continuous flame and reignites automatically if accidentally extinguished
Reversible burner grates
Flat on one side and uniquely contoured on the other to accommodate round-bottom woks
True hidden bake
Is achieved with a u-shaped burner below the oven floor providing even cooking performance with a clean appearance

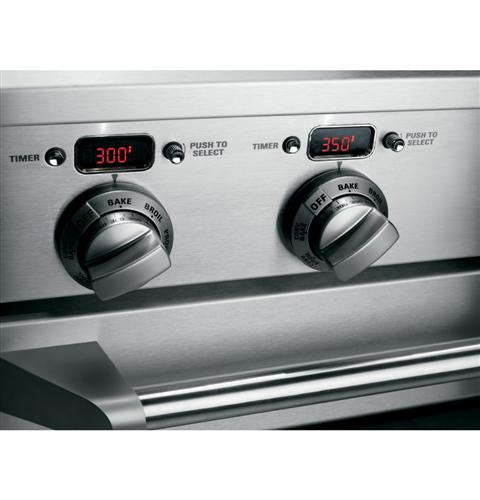

Large temperature and time displays
Make it easy to monitor cooking progress
Optional full-width stainless steel toekick
Is included with the range
Star-K certification
Allows Monogram ranges to operate in Sabbath mode

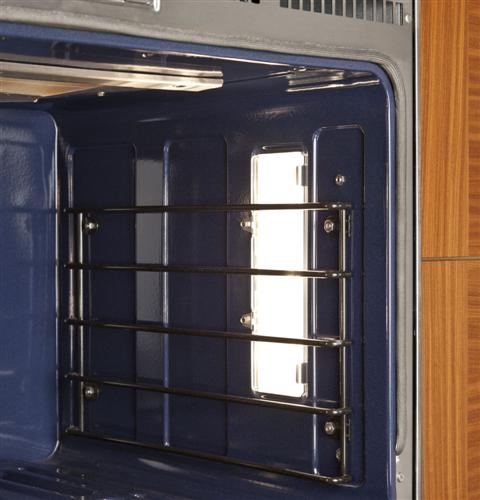

Halogen light columns
Provide a clear view, regardless of rack position

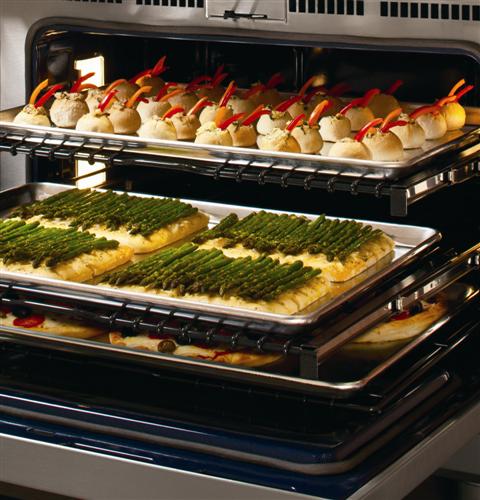

A caterer's oven
Is uniquely sized to accommodate three full-size sheet trays
Optional fixed (12 inch) or adjustable-height (30-36 inch) backsplashes
Are available
Specifications
Dimensions & Weights
Overall Height
35 1/4"
Height with Legs Retracted
35 1/4"
Height with Legs Extended
36 3/4"
Height to Cooking Surface
35 1/4" to 36 3/4"
Interior Oven Width
28 1/4"
Interior Oven Depth
19"
Interior Oven Height
16 3/8"
Net Weight
417 lbs.
Approximate Shipping Weight
462 lbs.
Overall Depth
28 1/4"
Cabinet Width
36"
Overall Width
35 7/8"
Appearance
Fuel Type
Gas
Style
Freestanding
Color
Stainless Steel
Cooktop
Sealed Burner
Continuous Grates
Yes
Stainless Steel Handle
Yes
Viewing Window
Yes
Drawer
None
Clock
No
Fuel Subtype
Natural Gas
Dimensions
Width
35 7/8 Inch
Depth
28 1/4 Inch
Height
35 1/4 Inch
Interior Width
28 1/4 Inch
Interior Depth
19 Inch
Interior Height
16 3/8 Inch
Burner Output
Set 1 QTY
6
Set 1 Output
18000
Burner 4 Output
18000
Burner 1 Output
18000
Burner 5 Output
18000
Burner 6 Output
18000
Simmer Burner
Yes
Burner 2 Output
18000
Burner 3 Output
18000
Cooktop Features
Burners / Elements
6
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Modules Required
No
Hot Surface Indicator Light
No
Grill
No
Griddle
No
Oven Features
Primary Oven Capacity
6.2 Cu. Ft.
Oven Control Type
Knobs
Digital Temperature Display
Yes
Timer
Yes
Convection
Yes
Self-Cleaning
Yes
Delay Bake
No
Proofing
Yes
Sabbath Mode
Yes
Broiler Element Location
Top
Temperature Probe
No
Interior Oven Light
Yes
Racks
3
Removable Door
Yes
Broiler Pan Included
No
Proof Mode
Yes
Technical Details
Star-K Certified
Yes
ADA Compliant
No
Ignition Type
Electronic
LP Conversion
Yes
Amps
15
Voltage
120 Volts
Product Information
Brand
Monogram
Model
ZGP366NRSS
UPC
084691224952
Overview
Fuel Type
Natural Gas
Color Appearance
Stainless Steel
Capacity
6.2 Cu. Ft.
Control Knobs
Die-Cast Metallic (Included); Die-Cast Black (Optional)
Installation
Flush Installation Capable
Ignition System
Electronic with Auto Re-ignition
Cooktop Specifications
No. of Burners
6 Sealed
Dual Flame
Yes
Stacked Burners
Yes
"Burner On" Indicator Lights
Yes
Cooktop Surface
Porcelain-Enamel
Oven Specifications
Cooking System
Reverse Air Convection
Cooking Technology
Convection
Oven Control Features
Delay Clean Option; Certified Sabbath Mode; Proof Mode
Oven Cooking Modes
Convection Bake; Convection Roast; Bake; Broil
Oven Racks
3 (2 Full Extension)
Rack Positions
5
Interior Oven Light
6 Halogen Lamps (Caterer Oven)
Self-Clean
Yes
Convection Roasting Rack
Yes
Broiler Pan and Grid
Yes
Automatic Self-Clean Oven Door Lock
Yes
Accessories
Optional 12" Stainless Steel Backsplash
ZX12B36PSS
Factory-Installed Island Backguard
Yes
LP Conversion Kit
Included
Natural Gas Conversion Kit
Included
Optional 30" - 36" Adjustable Stainless Steel Backsplash with
ZXADJB36PSS
Electrical Specifications
Electrical Requirements
120V/60Hz
Amperage
15A
Warranty
Labor Warranty
Limited 2-Year Entire Appliance
Parts Warranty
Limited 2-Year Entire Appliance
Gas Surface Burners
Limited 5-Year
Warranty Notes
See written Warranty for Full Details
Oven Racks
Limited Lifetime
Capacity
Number of Burners
6
Shabbos Compliance
Certification
STAR-K
