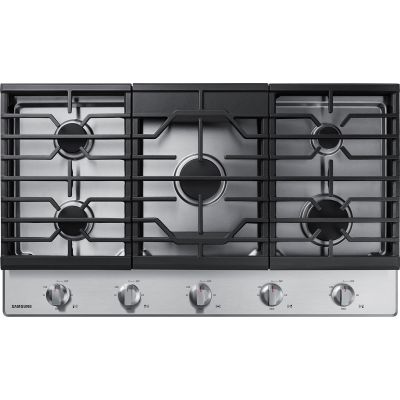

About the Samsung NA36R5310FS
- 36 Inch Gas Cooktop with Continuous Cast Iron Grates
- 5 Sealed Burners
- LP Conversion
- 55K BTU Output
- ADA Compliant: Stainless Steel
Brand:
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
36"
Height:
5 11/16"
Depth:
21"
Cutout Width:
33 7/8"
Cutout Depth:
19 1/8"
Volts:
120 Volts
Key Features
Powerful Burners
- Flexibility to accommodate numerous dishes at once
- Right Front: 13K BTU
- Left Front: 10K BTU
- Right Rear: 5K BTU (Simmer)
- Left Rear: 10K BTU
- Center: 17K BTU (Power Burner)
Additional Features
- Continuous Cast Iron Grates (3-Piece Sealed Burners)
- ADA Compliant
- LP Conversion Kit - Facilitates Conversion from Natural Gas to LP Gas
Manuals & Downloads
NA36R5310FS Installation Guide
NA36R5310FS Specification Sheet
NA36R5310FS User Manual
Specifications
GTIN
UPC
887276298948
EAN
0887276298948
Burner Output
Burner 2 Output
10K BTU
Burner 1 Output
13K BTU
Power Burner
Yes
Simmer Burner
Yes
Burner 3 Output
5K BTU (SIMMER)
Burner 4 Output
10K BTU
Burner 5 Output
17K BTU (POWER)
Dimensions
Cutout Depth
19 1/8 Inch
Cutout Width
33 7/8 Inch
Actual Height
5 11/16 Inch
Actual Depth
21 Inch
Actual Width
36 Inch
Appearance
Control Type
Knobs
Type
Drop-In
Style
Sealed Burner
Trim Color
Stainless Steel
Surface Color
Stainless Steel
Number of Burners
5
Fuel Subtype
Natural Gas
Color
Stainless Steel
Fuel Type
Gas
Specifications:
Fuel
Fuel
Natural Gas
Conversion
LP Conversion Kit
Technical Details
Voltage
120 Volts
LP Conversion
Yes
ADA Compliant
Yes
Gas Cooktop Features
Continuous Grates
Yes
Product Dimensions (Outside)
Width
36"
Height
5 11/16"
Depth
21"
Power
Total Power
55K BTU
Burner 5 (Center)
17K BTU (Power)
Burner 4 (Left Rear)
10K BTU
Burner 3 (Right Rear)
5K BTU (Simmer)
Burner 2 (Left Front)
10K BTU
Burner 1 (Right Front)
13K BTU
Power Source
120V/60H/1A
Product Information
Model
NA36R5310FS
Brand
Samsung
Warranty
Parts and Labor
1 Year
Shipping Dimensions
Shipping Weight
78.9 Lbs
Depth
25 5/8"
Height
10 5/8"
Width
40 9/16"
Product Dimensions (Cut-Out)
Product Weight
66.9 Lbs (Fingerprint Resistant Black Stainless Steel)
Depth
19 1/8"
Height
3 1/8"
Width
33 7/8"
General
Manufacturer
Samsung
