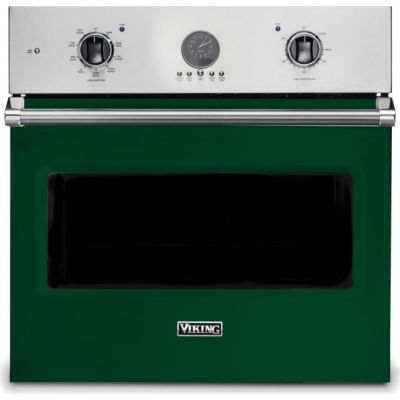

About the Viking VSOE530IV
- Viking VSOE530IV 30 Inch Single Wall Oven with 4.7 Cu. Ft. Capacity
- TruGlide™ Oven Racks
- Vari-Speed Dual Flow™ Convection
- TruConvec™ Convection Cooking
- 10-Pass Broiler with Heat Reflector
- Concealed Bake Element
- Rapid Ready™ Preheat
- TimePiece™ Clock/Timer: Ivy
Brand:
Oven Style:
Single
Capacity:
4.7 Cu. Ft.
Convection:
Yes
Self Clean:
Yes
Color:
Ivy
Width:
29 1/2"
Height:
29 1/2"
Cutout Width:
28 1/2"
Cutout Height:
28 1/8"
Fuel Type:
Electric
Volts:
240/208 Volts
Amps:
30
With the same superior features as the Viking Select Ovens, the Premiere models also offer additional features such as a large glass enclosed infrared broiler, meat probe, TruGlide™ full extension racks, and the exclusive multifunctional digital/analog TimePiece™ clock. Flush Mount Kit Accessory also available. The Viking 5 Series Premiere Electric Oven was built to satisfy any kitchen necessity.
About Viking
Viking introduced professional cooking to the home when their first range shipped in 1987. Now that same exceptional performance extends into every corner of the kitchen - even the backyard. Refrigerators. Wine Cellars. Dishwashers. Grills. Cookware. Cutlery. Small appliances. It's enough to turn any cook into a chef. The legendary Viking range is available in gas and electric models, as well as an array of sizes and finishes to fit any kitchen. Available at Designer Appliances.
Key Features
Large Capacity Oven
- Cook for everyone you know and still have leftovers with the largest capacity oven in the industry.
TruGlide™ Full Extension Racks
- Easily extend and hold heavy items on any rack level with the help of roller bearing glides.
Vari-Speed Dual Flow™ Convection
- Maximize airflow and fluffiness with Vari-Speed Dual Flow™ Convection System. Two-speed convection system capable of turning the fan in both directions. This combined with the largest convection fan blade in the industry provides maximum airflow.
TruConvec™ Convection Cooking
- TruConvec™ Convection Cooking refers to the exclusive air circulation system employed by Viking convection ovens. Uses only convection element in rear of oven and fan-forced air - no direct heat from top or bottom.
10-Pass Broiler with Heat Reflector
- Go from toasting to searing with the variety of settings available on the electric broiler with heat reflector. 10 pass broiler with heat reflector with HI, MED, and LOW settings provides intense searing heat for a variety of broiling applications.
Concealed Bake Element
- Get more control and less mess with the 10-pass concealed bake element. This dual concealed bake element provides finer temperature control and makes oven clean up easy.
Rapid Ready™ Preheat System
- Wait less and cook more with the Rapid Ready™ Preheat System. Quick preheat means less time for the user to wait for the oven to be ready to cook in.
TimePiece™ Clock/Timer
- This precision instrument marks time in both digital and analog modes, helping you eye baking/broiling times for juicy roasts, perfect souffles, and warm loaves of bread.
Additional Features
- Meat Probe
- BlackChrome™ Knobs
- Larger window opening
- Self-clean oven setting with indicator light
- Heavy-duty oven door handle
- High-density insulation
- Flush Mount Kit Accessory
Specifications
GTIN
UPC
800284065753
Oven Features
Convection
Yes
Fast Preheat
Yes
Delay Bake
Yes
Timer
Yes
Digital Temperature Display
No
Convection Type
True European
Proof Mode
No
Self-Cleaning
Yes
Interior Oven Light
Yes
Broiler Element Location
Top
Broiler
Yes
Temperature Probe
No
Glide Rack(s)
Yes
Steam Clean
No
Self-Cleaning Type
High Heat
Capacity
Oven Racks
3
Capacity
4.7 Cu. Ft.
Shabbos Compliance
Sabbath Mode
No
Dimensions
Exterior Height
29 1/2 Inch
Exterior Depth
25 3/4 Inch
Exterior Width
29 1/2 Inch
Cutout Height
28 1/8 Inch
Cutout Depth
24 Inch
Cutout Width
28 1/2 Inch
Appearance
Clock
No
Drawer
None
Viewing Window
Yes
Control Type
Knobs
Stainless Steel Handle
Yes
Color
Ivy
French Door Oven
No
Door Style
Drop Down
Steam Oven
No
Speed Oven
No
Microwave
No
Style
Single
Fuel Type
Electric
Product Information
Warranty Terms
2 years ? Viking Appliances are backed by a full two year warranty. For additional details, visit https://www.vikingrange.com/consumer/category/support
Model
VSOE530IV
Brand
Viking
General
Series
5
Manufacturer
Viking
Technical Details
Voltage
240/208 Volts
Amps
30
Approved for Outdoor Use
No
ADA Compliant
No
Dimensions and Weight
Height
29 1/2
Width
29 1/2
Depth
25 3/4
Cutout Height Standard
28 1/8
Weight
261 Lbs
Cutout Depth Flush Mount
25 3/4
Cutout Depth Standard
24
Cutout Width Flush Mount
29 15/16
Cutout Width Standard
28 1/2
Cutout Height Flush Mount
30 5/16
Technical Data
Frequency
60 Hz.
Amps
24/20.8 Amps
Volts
240/208 Volts
Electrical Requirements
4-wire ground, 240VAC, 60 Hz, 30-amp electrical connection. Unit equipped with No. 10 ground wire in conduit. Should be fused separately.
Overview
BlackChrome™ Knobs
Yes
CoolLit™ LED Lights
Yes
Timer
Yes
Delay Bake
Yes
Interior Light
Yes
Convection
Yes
Self-Clean
Yes
Oven Racks
3
Control Type
Knobs
Door
Drop Down
Style
Single
Capacity
4.7 cu. ft.
