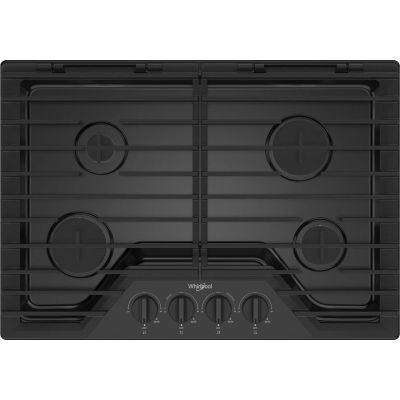

About the Whirlpool WCGK5030PB
- Whirlpool WCGK5030PB 30 Inch Gas Cooktop with 4 Sealed Burners
- SpeedHeat™ Burner
- 5K BTU Simmer Burner
- EZ-2-Lift™ Hinged Cast-Iron Grates
- ADA Compliant: Black
Brand:
Finish:
Black
Fuel Type:
Gas
Style:
Sealed Burner
Width:
30"
Height:
5 9/16"
Depth:
21"
Cutout Width:
29 9/16"
Cutout Depth:
20"
Volts:
120 Volts
Amps:
15
Get the most out of your mealtime routine with a 4-burner cooktop that does more and cleans up fast. Cleanup is quick and easy with a cooktop designed to cut down on messes. Dishwasher-safe, EZ-2-Lift™ Cast Iron Grates are hinged, so there's no need to remove them to wipe underneath, and raised edges help contain spills. For added flexibility, install this cooktop over a wall oven or on its own.
About Whirlpool
An American company for over 100 years, Whirlpool Corporation began as a small company in 1911 in Benton Harbor, Michigan. Today, Whirlpool is a global home appliance company selling products around the world. Whirlpool is proud of its American heritage and has been innovating for 100 years.
Key Features
4 Sealed Burners
- Cut down on cleanup with burners that are sealed to prevent food from falling into them.
SpeedHeat™ Burner
- Get a rapid boil and perfect sear quickly with the SpeedHeat™ Burner, which generates high heat to get dinner to the table fast.
5K BTU Simmer Burner
- Easily maintain low, even heat to simmer your sauces, warm up leftovers or melt chocolate with the 5K BTU Simmer Burner.
9.1K - 12K BTU Multi-Purpose Burners
- Get a variety of heating power with your multi-purpose burners. The 9.1K BTU burner gives medium heat for daily cooking while the 12K BTU burner gives quick, high heat for searing.
EZ-2-Lift™ Hinged Cast-Iron Grates
- Get quick access to spills on the cooktop with Whirlpool's industry-first EZ-2 Lift™ Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without the hassle of removing heavy grates.
Dishwasher-Safe Cast-Iron Grates
- Wash these cast-iron grates right in the dishwasher when they get messy, thanks to a dishwasher-safe finish that makes them easy to clean.
Edge-to-Edge Cast-Iron Grates
- Maximize your space to sauté, boil and simmer with cast-iron grates that extend across the entire cooktop, giving you the flexibility to move pots and pans anywhere.
Upswept SpillGuard™ Cooktop
- Cleanup is fast and easy with a cooktop that has raised edges to help contain spills.
Wall Oven Compatible
- Install this cooktop in a counter above select Whirlpool® Single Wall Ovens or on its own for more flexibility.*
ADA Compliant
- This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
*See Oven/Cooktop Compatibility in specifications for more information.
Specifications
GTIN
EAN
0883049678160
UPC
883049678160
Burner
Power Burner
Yes
Simmer Burner
Yes
Burner 1 Output
12000
Burner 2 Output
5000
Burner 4 Output
9100
Burner 3 Output
18000
Smart
WiFi
No
Shabbos Compliance
Certification
None
Sabbath Mode
No
Dimensions
Cutout Depth
20 Inch
Cutout Width
29 9/16 Inch
Actual Height
5 9/16 Inch
Actual Depth
21 Inch
Actual Width
30 Inch
Appearance
Downdraft Venting
No
Fingerprint Resistant
No
Glass Surface
No
Trim Color
Black
Surface Color
Black
Color
Black
Controls Location
Front
Control Type
Knobs
Type
Drop-In
Style
Sealed Burner
Number of Burners
4
Fuel Subtype
Natural Gas
Fuel Type
Gas
Technical Details
Voltage
120 Volts
Amps
15
LP Conversion
Yes
ADA Compliant
Yes
Energy Star Rated
No
Gas Cooktop Features
French Top
No
Griddle
No
Grill
No
Cooktop Accessory
No Accessory
Dishwasher Safe Grates
Yes
Continuous Grates
Yes
Element/Burner Details
Cooktop Element Style
Sealed Burner
Number of Cooking Element-Burners
4
Left Front Element-Burner Power
12,000 BTU
Right Rear Element-Burner Power
18,000 BTU (SpeedHeat™ Burner)
Left Rear Element-Burner Power
5,000 BTU (Simmer Burner)
Right Front Element-Burner Power
9,100 BTU
Cooktop Details
Ignition Type
Direct Spark Ignition
Hot Surface Indicator Light
No
Heating Element On Indicator Light
No
Digital Display
No
Number of Grates
2
Grate Details
Cast Iron Grates, Continuous with Hinge, Dishwasher Safe, Matte Finish
Control Type
Knobs
Control Location
Front
Cooktop Surface Color
Color Coordinated
Cooktop Type
Standard
Power Outage Compatible
Yes
LP Convertible
Yes - Kit Included
Installs Over Built-In Oven
Yes
Fuel Type
Gas
Product Information
Warranty Terms
1 year ? Whirlpool Appliances are backed by a one year warranty. For additional details, visit https://www.whirlpool.com/blog/kitchen/warranties.html
Model
WCGK5030PB
Brand
Whirlpool
Dimensions
Net Weight
56.14 lbs.
Gross Weight
60.54 lbs.
Cutout Depth
20"
Cutout Width
29 9/16"
Actual Height
5 9/16"
Actual Depth
21"
Actual Width
30"
