About the Whirlpool WCGK5036PV

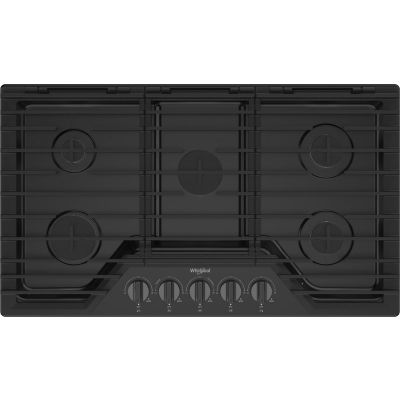

- Whirlpool WCGK5036PV 36 Inch Gas Cooktop with 5 Sealed Burners
- SpeedHeat Burner
- 5K BTU Simmer Burner
- Fifth Burner
- EZ-2-Lift Grates
- ADA Compliant: Black Stainless Steel
Brand:
Finish:
Black Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
36"
Height:
5 9/16"
Depth:
21"
Cutout Width:
35 1/4"
Cutout Depth:
20"
Volts:
120 Volts
Amps:
15
Get the most out of your mealtime routine with a 5-burner cooktop that does more and cleans up fast. Cleanup is quick and easy with a cooktop designed to cut down on messes. Dishwasher-safe, EZ-2-Lift™ Cast Iron Grates are hinged, so there's no need to remove them to wipe underneath, and raised edges help contain spills. For added flexibility, install this cooktop over a wall oven or on its own.
Key Features
5 Sealed Burners
- Navigate busy mealtimes with various burner sizes and a range of power levels, so you can simmer your sauce while you sear your steaks to maximize time in the kitchen.
- Cut down on cleanup with burners that are sealed to prevent food from falling into them.
SpeedHeat™ Burner
- Get a rapid boil and perfect sear quickly with the SpeedHeat™ Burner, which generates high heat to get dinner to the table fast.
5K BTU Simmer Burner
- Easily maintain low, even heat to simmer your sauces, warm up leftovers or melt chocolate with the 5K BTU Simmer Burner.
Fifth Burner
- Save time and cook everyone’s favorite at once with the extra Fifth Burner. With room to fit different pan sizes, you can boil water, sauté veggies and sear burgers all at the same time.
9.1K–12K BTU Multi-Purpose Burners
- Get a variety of heating power with your multi-purpose burners. The 9.1K BTU burner gives medium heat for daily cooking while the 12K BTU burner gives quick, high heat for searing.
EZ-2-Lift™ Hinged Cast-Iron Grates
- Get quick access to spills on the cooktop with our industry-first EZ-2-Lift™ Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without the hassle of removing heavy grates.
Dishwasher-Safe Cast-Iron Grates
- Wash these cast-iron grates right in the dishwasher when they get messy, thanks to a dishwasher-safe finish that makes them easy to clean.
Edge-to-Edge Cast-Iron Grates
- Maximize your space to sauté, boil and simmer with cast-iron grates that extend across the entire cooktop, giving you the flexibility to move pots and pans anywhere.
Upswept SpillGuard™ Cooktop
- Cleanup is fast and easy with a cooktop that has raised edges to help contain spills.
Wall Oven Compatible
- Install this cooktop in a counter above select Whirlpool® Single Wall Ovens or on its own for more flexibility.*
- *See Oven/Cooktop Compatibility in specifications for more information.
ADA Compliant
- This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Key Features EZ-2-Lift™ Hinged Cast-Iron Grates Spend less time cleaning and more time cooking with EZ-2-Lift™ Hinged Cast-Iron Grates, the industry’s first design that lets you wipe under spills without removing the grates. SpeedHeat™ Experience powerful cooking performance—the SpeedHeat™ Burner generates intense heat for a quick boil and flawless sear, helping dinner come together in no time. Upswept SpillGuard™ Cleanup is effortless with raised edges that help keep spills contained on the cooktop.
Specifications
Appearance
Style
Sealed Burner
Downdraft Venting
No
Type
Drop-In
Control Type
Knobs
Controls Location
Front
Color
Black Stainless Steel
Surface Color
Black Stainless Steel
Trim Color
Black Stainless Steel
Glass Surface
No
Fingerprint Resistant
No
Number of Burners
5
Fuel Type
Gas
Fuel Subtype
Natural Gas
Dimensions
Actual Depth
21 Inch
Actual Height
5 9/16 Inch
Cutout Width
35 1/4 Inch
Cutout Depth
20 Inch
Actual Width
36 Inch
Shabbos Compliance
Sabbath Mode
No
Certification
None
Smart
WiFi
No
Burner
Simmer Burner
Yes
Power Burner
Yes
Burner 1 Output
12000
Burner 2 Output
5000
Burner 3 Output
18000
Burner 4 Output
9100
Burner 5 Output
9100
Technical Details
Energy Star Rated
No
LP Conversion
Yes
Amps
15
Voltage
120 Volts
ADA Compliant
Yes
GTIN
UPC
883049678627
EAN
0883049678627
Gas Cooktop Features
French Top
No
Continuous Grates
Yes
Dishwasher Safe Grates
Yes
Cooktop Accessory
No Accessory
Grill
No
Griddle
No
Cooktop Details
Fuel Type
Gas
Heating Element On Indicator Light
No
Hot Surface Indicator Light
No
Ignition Type
Direct Spark Ignition
Digital Display
No
Number of Grates
3
Installs Over Built-In Oven
Yes
LP Convertible
Yes - Kit Included
Power Outage Compatible
Yes
Cooktop Type
Standard
Cooktop Surface Color
Color Coordinated
Control Location
Front
Control Type
Knobs
Grate Details
Cast Iron Grates, Continuous with Hinge, Dishwasher Safe, Matte Finish
Element/Burner Details
Cooktop Element Style
Sealed Burner
Number of Cooking Element-Burners
5
Center Front Element-Burner Power
18,000 BTU (SpeedHeat™ Burner)
Right Front Element-Burner Power
12,000 BTU
Left Front Element-Burner Power
9,100 BTU
Right Rear Element-Burner Power
5,000 BTU (Simmer Burner)
Left Rear Element-Burner Power
9,100 BTU
Dimensions & Weight
Cutout Depth
20"
Net Weight
66.7 lbs
Gross Weight
73.36 lbs.
Minimum Height
5 9/16"
Maximum Height
5 9/16"
Cutout Depth Max
20"
Cutout Depth Min
19"
Cutout Width
35 1/4"
Cutout Width Max
35 1/4"
Depth
21"
Height
5 9/16"
Width
36"
Common Size
36"
Certifications
ADA Compliant
ADA Height and Side Reach Compliant
UL
Yes
Product Information
Brand
Whirlpool
Model
WCGK5036PV
Warranty Terms
1 year ? Whirlpool Appliances are backed by a one year warranty. For additional details, visit https://www.whirlpool.com/blog/kitchen/warranties.html
