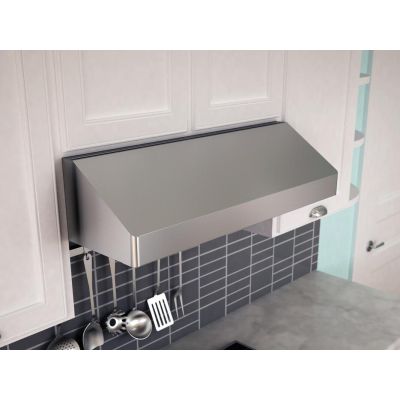

About the Zephyr AK7136BS290BF
- 36 Inch Under Cabinet Range Hood with 3-Speed/290 CFM Blower
- Mechanical Slide Controls
- LED Light Strip
- Baffle Filters
- Adjustable Utensil Bar
- Vertical or Horizontal Ducting
- UL Listed
Brand:
CFM:
290 CFM
Venting Type:
Convertible
Style:
Canopy Pro Style
Width:
35 15/16"
Height:
7 3/8"
Depth:
21"
A discreet, European-style, professional-looking range hood, Gust adds fashion to under-cabinet installations. With its mechanical controls neatly tucked away below the canopy, Gust provides the subtlety its owners require. Its perfectly curved corners and understated top-mounted return-air louver offer further evidence that Gust spares nothing when it comes to quality construction. Available with LED Light Strip and optional ductless recirculating kit.
About Zephyr
Since the launch of their first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
3-Speed
- Allow you to adjust ventilation to meet your needs.
400 CFM Blower
- Remove smoke and odor with ease with a powerful internal blower.
Mechanical Slide Controls
- Offer simple operation.
LED Light Strip
- Dual levels of light offer the perfect mood option for your kitchen.
Baffle Filters
- To filter out residue and grease from cooking.
Vertical or Horizontal Ducting
- It gives the performance and flexibility you need.
- Additional Features
- Dual-Level Lighting
- Welded and Polished Body
- Optional Ductless Recirculating Kit
- Adjustable Utensil Bar
- UL Listed
AK7136BS290BF Specification Sheet
Specifications
GTIN
UPC
646328008788
Features
Number of Fan Speeds
3
Filter Type
Baffle
Lighting Levels
2
Lights
LED
Delay Shut-Off
No
Capacity
Sones
3.2
Permanent Air Flow Reduction
Yes
CFM
290 CFM
Noise Level
3.2 Sones
Smart
Bluetooth
No
WiFi
No
Dimensions
Height
7 3/8 Inch
Depth
21 Inch
Width
35 15/16 Inch
Appearance
Blower Type
Internal
Blower Included
Yes
Venting Type
Convertible
Mounting Type
Under Cabinet
Glass Canopy
No
Fingerprint Resistant
No
Color
Stainless Steel
Type
Hood
Style
Canopy Pro Style
Specifications:
Series
Core Collection
Technical Details
Approved for Outdoor Use
No
Voltage
120 Volts
CEE Rating
Not Available
Energy Star Rated
No
ADA Compliant
No
Warranty
Labor
1 Year
Parts
3 Years
Optional Accessories
Damper, 7" Round
AK00067
Make-Up Air Kit
MUA006A
Recirculating Kit
ZRC-0071
Blower Performance
Blower CFM (Min. - Max.)
120 - 290
Sones (Min. - Max.)
1.1 - 3.2
Overview
Recirculating Option
Yes
Filters
Baffle x2
Dual-Level Lighting
Yes
Lighting
LED Light Strip, 6W x2
Auto Delay-Off
No
Speed Levels
3
Controls
Mechanical Slide
Color
Stainless Steel
Size
36"
Duct Specifications
Vertical Internal Blower
7" Round or 3 1/4" x 10"
Horizontal Internal Blower
3 1/4" x 10"
Product Information
MPN
AK7136BS290-BF
Model
AK7136BS290BF
Brand
Zephyr
Dimensions
Height
7 3/8"
Depth
21"
Width
35 15/16"
Mounting Height Range
24" - 32"
Electrical Specifications
AC Power
120V, 60Hz at Max. 1.55A
