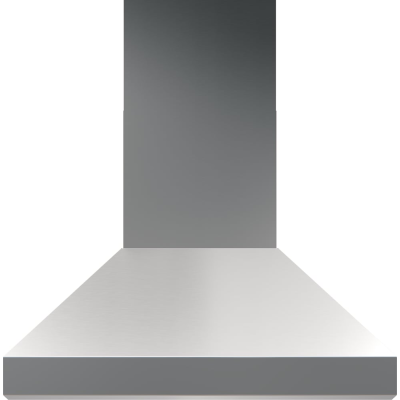

About the Zephyr AK7642BS
- 42 Inch Wall Hood with PowerWave™ Blower
- Airflow Control Technology™
- Grease Collection Tray
- Directional LED Lighting
- Electronic LCD Controls
- CleanAir Function and Professional Baffle Filters
Brand:
CFM:
750 CFM
Venting Type:
Ducted
Style:
Chimney Style
Width:
41 15/16"
Height:
30"
Depth:
24"
Titan challenges the definition of pro-style hoods with its impressive size, powerful blower, and stunning good looks. Featuring Zephyr's new PowerWave™ blower technology, Titan features a 750 CFM blower with the option to combine two blowers together to achieve 1,300 CFM. Its unique aerodynamic blades improve efficiency with unparalleled quiet operation. The ultimate workhorse in the kitchen, Titan is available up to 60-inches and features pro baffle filters and LED lighting.
About Zephyr
Since the launch of their first hoods in 1997, Zephyr has remained true to their vision of delivering the unexpected-by deliberately seeking to change the marketplace. Zephyr was first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency-and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
PowerWave™ Blower
- PowerWave™ has unique aerodynamic blades to help move up to 750 CFM of air while minimizing noise and improving efficiency.
Airflow Control Technology™ (ACT™)
- An exclusive feature built into specific Zephyr hoods which can limit the maximum blower CFM to 590, 390 or 290 to meet local code requirements.
Other Features
- Grease Collection Tray
- Directional LED Lighting
- Electronic LCD Controls
- CleanAir Function
- Professional Baffle Filters
Warranty
- Parts 3 Years Limited
- Labor 1 Year Limited
Specifications
GTIN
UPC
646328010507
AC Power
Single Blower
120V, 60Hz at Max. 5A
Dual Blower
120V, 60Hz at Max. 8A
Duct Specifications
Duct Discharge
Vertical or Horizontal
Horizontal Dual Internal Blower
10" Round
Vertical Dual Internal Blower
10" Round
Horizontal Single Internal Blower
8" Round
Vertical Single Internal Blower
8" Round
Blower Performance
Note
*ACT™ only available with a single internal blower
Optional Dual Blower
350-1,300 CFM, 1 - 8 Sones
ACT 290 CFM (Min. - Max.)*
200 - 290 CFM
ACT 390 CFM (Min. - Max.)*
200 - 390 CFM
ACT 590 CFM (Min. - Max.)*
200 - 590 CFM
Included Single Blower
200 - 750 CFM, 0.5 - 7 Sones
Product Overview
ADA Compliant
Yes (w/ Remote Accessory)
Duct Cover Extension Option
Yes
Recirculating Option
No
Wireless Remote Control
Yes, Optional
Grease Collection Tray
Yes
Filters
Pro Baffle x2
Dual-Level Lighting
Yes
Directional Lighting
LumiLight LED, 6W x2
CleanAir Function
Yes
Auto Delay-Off
Yes
Speed Levels
6
Controls
Electronic LCD
ACT™ Technology
590, 390, 290, Single Blower Only
Size
42"
Dimensions & Weights
Width
41 15/16"
Depth
24"
Shipping Weight
92.9 lbs.
Product Weight
80 lbs.
Height
30" - 42 1/2"
Capacity
Noise Level
7 Sones
CFM
750 CFM
Sones
7
Technical Details
Approved for Outdoor Use
No
Energy Star Rated
No
ADA Compliant
Yes
Voltage
120 Volts
Amps
10
Features
Delay Shut-Off
Yes
Dishwasher Safe Filters
Yes
Filter Type
Baffle
Number of Fan Speeds
6
Lights
LED
Lighting Levels
3
Smart
WiFi
No
Appearance
Glass Canopy
No
Blower Type
Internal
Blower Included
Yes
Venting Type
Ducted
Mounting Type
Wall Mount
Color
Stainless Steel
Type
Hood
Style
Chimney Style
Warranty
Labor
1 Year
Parts
3 Years
Dimensions
Height
30 Inch
Depth
24 Inch
Width
41 15/16 Inch
Product Information
Model
AK7642BS
Brand
Zephyr
General
Series
Pro Titan Wall
Manufacturer
Zephyr
