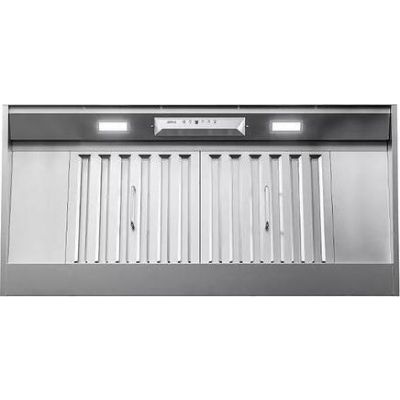

About the Zephyr AK9240BS
- 42 Inch Cabinet Insert One-Piece Liner with 6-Speed/1200 CFM Blower
- Electronic Touch Controls
- LED Light Strip
- Professional Baffle Filters
- Airflow Control Technology™
- Wireless Remote Control
- ADA Compliant
Monsoon I has taken the one-piece liner to the next level. Including dual-level LED light strip and an ADA-compliant wireless remote you can easily control Monsoon I without ever reaching over a dangerous cooking surface. Equipped with 6-speed electronic controls, professional baffle filters, Zephyr exclusive ACT™ Technology, and a powerful 1200 CFM blower.
About Zephyr
Since the launch of their first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
1200 CFM Internal Blower
- A powerful blower that is efficient and quiet.
6 Speed Levels & Electronic Touch Controls
- 6-speed electronic controls for every cooking situation.
LED Light Strip
- Dual levels of LED light offer the perfect mood option for your kitchen.
Professional Baffle Filters
- Dishwasher-safe, high-airflow pro baffle filters help trap grease and remove smoke.
CleanAir Function
- The feature turns the hood on speed 1 every four hours for 10 minutes to circulate the air.
Airflow Control Technology™
- Airflow Control Technology™ (ACT™) is an exclusive feature built into specific Zephyr hoods which can limit the maximum blower CFM to meet local code requirements.
Additional Features
- Dual-Level Lighting
- Auto Delay-Off
- Wireless Remote Control
- ADA Compliant
AK9240BS Specification Sheet
Specifications
Smart
WiFi
No
Remote Control
Yes
Bluetooth
No
Features
ADA Compliant
Yes
ACT Technology
Yes
Auto Delay-Off
Yes
CleanAir Function
Yes
Controls
Electronic Touch
Wireless Remote Control
Yes
Speed Levels
6
Recirculating Option
No
Lighting
LED Light Strip, 6W x2
Grease Collection Tray
Yes
Filters
Pro Baffle x2
Dual-Level Lighting
Yes
Warranty
Parts
3 Years
Labor
1 Year
Blower Performance
Blower CFM with ACT
350 - 590
Blower CFM (Min. - Max.)
450 - 1,200
Dimensions
Width
40 3/8"
Mounting Height Range
26" - 36"
Height
12"
Depth
19 1/4"
Duct Specifications
Vertical Internal Blower
10" Round
Capacity
Sones
9
Permanent Air Flow Reduction
Yes
CFM
1,200 CFM
Noise Level
9 Sones
Duct Size
10 Inch
Specifications:
Series
Core Collection Power Monsoon I
Dimensions
Width
40 3/8 Inch
Depth
19 1/4 Inch
Height
12 Inch
Technical Details
Voltage
120 Volts
CEE Rating
Not Available
Approved for Outdoor Use
No
ADA Compliant
Yes
Energy Star Rated
No
Appearance
Venting Type
Ducted
Type
Cabinet Insert
Color
Stainless Steel
Blower Type
Internal
Blower Included
Yes
Mounting Type
Under Cabinet
Glass Canopy
No
Fingerprint Resistant
No
GTIN
UPC
646328008290
EAN
0646328008290
Electrical Specifications
AC Power
120V, 60Hz at Max. 7A
Features
Number of Fan Speeds
6
Delay Shut-Off
Yes
Lights
LED
Lighting Levels
2
Filter Type
Baffle
Dishwasher Safe Filters
Yes
Product Information
Brand
Zephyr
Model
AK9240BS
General
Manufacturer
Zephyr
