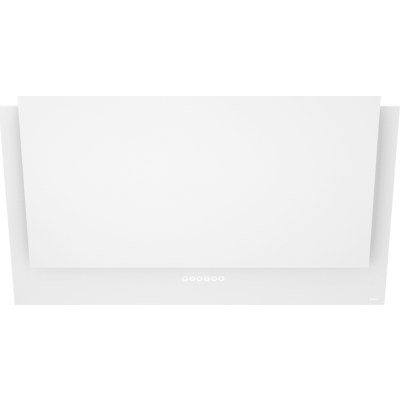

About the Zephyr DAPM90AMWX
- Apex Wall Mount Range Hood with Capacitive Touch Controls
- Tri-Level LED Lighting
- Aluminum Mesh Filters
- Multiple Blower Options
- CleanAir Function
- Auto Delay-Off
- UL Listed: White
The combination of exceptional style and the power and performance you'd expect from Zephyr results in a hood that fits in any kitchen. Featuring a white or black matte finish, easy Capacitive Touch Controls, a recirculating option, and includes duct cover, the Apex Wall is a hood for today, tomorrow, and beyond.
About Zephyr
Since the launch of their first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency-and raised the bar with self-cleaning, filter-free technologies never before seen. They now enter the world of wine & beverage cooling.
Key Features
3-Speed Motor
- Allow you to adjust ventilation to meet your needs
Capacitive Touch Controls
- Offers simple operation
Tri-Level Lighting
- High and Low levels of light offer the perfect mood option for your kitchen
Aluminum Mesh Filters
- Filter out residue and grease from cooking
Additional Features
- Multiple Blower Options
- CleanAir Function
- Auto Delay-Off
- UL Listed
Specifications
Smart
WiFi
No
Bluetooth
No
Overview
Controls
Capacitive Touch
Color
Matte White
CleanAir Function
Yes
Certification
UL
Auto Delay-Off
Yes
Filters
Aluminum Mesh x2
Lighting
LED, 5W x2
Recirculating
Yes
Tri-Level Lighting
Yes
Speed Levels
3
Size
36"
Warranty
Parts
2 Years
Labor
1 Year
Blower Performance
Internal Blower (CBI-600A)
240-600 CFM, 1.8-6 sones
Internal Blower (CBI-290C)
200-290 CFM, 1.4-3 sones
In-Line Blower (PBN-1000A)
500-1,000 CFM, sones NA
External Blower (CBE-1000)
500-1,000 CFM, sones NA
Blower Included
No
Dimensions
Width
35 3/8"
Height
19 3/4"
Depth
19 13/16"
Dimensions
Width
35 3/8 Inch
Depth
19 13/16 Inch
Height
19 3/4 Inch
Technical Details
Voltage
120 Volts
Approved for Outdoor Use
No
Amps
15
ADA Compliant
No
Energy Star Rated
No
Appearance
Venting Type
Convertible
Type
Hood
Style
Unique
Color
Matte White
Blower Type
Sold Separately
Blower Included
No
Fingerprint Resistant
No
Mounting Type
Wall Mount
Glass Canopy
Yes
GTIN
UPC
646328008894
AC Power
Hood w/ PBN-1000A
120V, 60Hz, Max. 5.4A
Hood w/ CBI-600A
120V, 60Hz, Max. 3A
Hood w/ CBI-290C
120V, 60Hz, Max. 1A
Hood w/ CBE-1000
120V, 60Hz, Max. 6.6A
Features
Dishwasher Safe Filters
Yes
Delay Shut-Off
Yes
Filter Type
Mesh
Number of Fan Speeds
3
Lights
LED
Lighting Levels
3
Product Information
Brand
Zephyr
MPN
DAP-M90AMWX
Model
DAPM90AMWX
Duct Specifications
Vertical Single Internal Blower
6" Round
Vertical In-Line/External Blower Round
10" to 8" Round
Horizontal Single Internal Blower
6" Round
Horizontal In-Line/External Blower
10" to 8" Round
General
Series
Designer
Manufacturer
Zephyr
