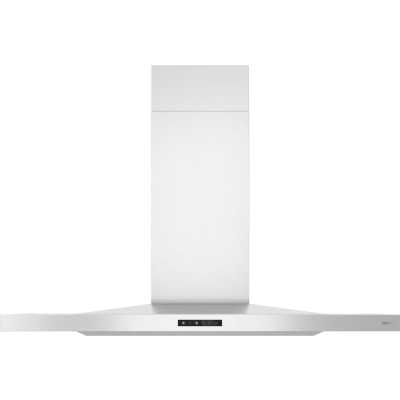

About the Zephyr DLAE42ASSX
- Layers Wall Mount Range Hood with Invisible Touch Controls
- Tri-Level LED Lighting
- Aluminum Mesh Filter
- CleanAir Function
- Perimeter Aspiration System
- Delayed Shut-Off
- Multiple Blower Options
- UL Listed: 42" Width
Streamlined pyramid-shaped styling and a menu of blower options make this updated & improved Layers Wall the timeless classic hood your kitchen needs. It comes with Invisible Touch Controls, tri-level LED lighting, an extension duct cover option, and a recirculating option.
About Zephyr
Since the launch of their first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency-and raised the bar with self-cleaning, filter-free technologies never before seen. They now enter the world of wine & beverage cooling.
Key Features
3-Speed Motor
- Allow you to adjust ventilation to meet your needs
Invisible Touch Controls
- Offers simple operation
Tri-Level LED Lighting
- High and Low levels of light offer the perfect mood option for your kitchen
Aluminum Mesh Filter
- Filter out residue and grease from cooking
CleanAir Function
- Turns your hood on once every four hours for 10 minutes on speed one to increase circulation
Perimeter Aspiration System
- Increases air velocity and improves the capture of cooking contaminants
Additional Features
- ADA Compliant with Optional Remote
- Delayed Shut-Off
- Multiple Blower Options
- UL Listed
Warranty
- Parts 2 Years Limited
- Labor 1 Year Limited
Specifications
Smart
WiFi
No
Bluetooth
No
Overview
Lighting
LED, 5W x4
Filters
Aluminum Mesh x1
Extension Duct Cover Option
Yes, Up to 12' Ceiling
Controls
Invisible Touch
Color
Stainless Steel
CleanAir Function
Yes
Certification
UL
Auto Delay-Off
Yes
Perimeter Aspiration System
Yes
Recirculating
Yes
Size
42"
Tri-Level Lighting
Yes
Speed Levels
3
Warranty
Parts
2-year
Labor
1-year
Blower Performance
Internal Blower (CBI-600A)
240-600 CFM, 1.8-6 Sones
Internal Blower (CBI-290C)
200-290 CFM, 1.4-3 Sones
In-Line Blower (PBN-1000A)
500-1,000 CFM, Sones NA
External Blower (CBE-1000)
500-1,000 CFM, Sones NA
Blower Included
No
Dimensions
Width
41 15/16 Inch
Depth
22 Inch
Height
27 Inch
Technical Details
Voltage
120 Volts
Energy Star Rated
No
ADA Compliant
No
Appearance
Venting Type
Convertible
Type
Hood
Style
Chimney Style
Color
Stainless Steel
Blower Type
Sold Separately
Blower Included
No
Fingerprint Resistant
No
Glass Canopy
No
Mounting Type
Wall Mount
GTIN
UPC
646328008887
AC Power
Hood w/ PBN-1000A
120V, 60Hz, Max. 5.5A
Hood w/ CBI-600A
120V, 60Hz, Max. 3.1A
Hood w/ CBI-290C
120V, 60Hz, Max. 1.1A
Hood w/ CBE-1000
120V, 60Hz, Max. 6.7A
Features
Dishwasher Safe Filters
Yes
Delay Shut-Off
Yes
Filter Type
Mesh
Number of Fan Speeds
3
Lights
LED
Lighting Levels
3
Product Information
Brand
Zephyr
MPN
DLA-E42ASSX
Model
DLAE42ASSX
Dimensions
Width
41 15/16"
Height
27"
Depth
22"
General
Series
Designer
Manufacturer
Zephyr
Capacity
Permanent Air Flow Reduction
No
