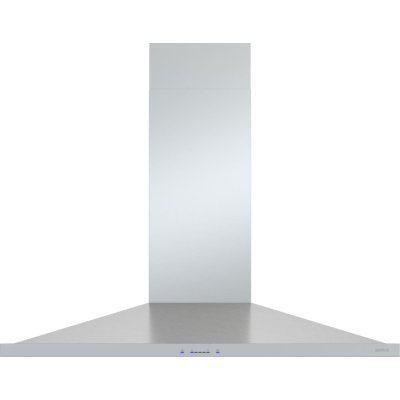

About the Zephyr ZANM90DS
- Anzio Wall Mount Range Hood with 5-Speed 600 CFM Blower
- ICON Touch™ Controls
- LumiLight LED Lighting
- Aluminum Mesh Filters
- Airflow Control Technology™
- Auto Delay-Off
- Low-Profile Body
- Optional Ductless Recirculating Kit: 36 Inch - Stainless Steel
Brand:
CFM:
600 CFM
Venting Type:
Convertible
Style:
Chimney Style
Width:
35 7/16"
Height:
27"
Depth:
22 1/16"
Anzio is a low-profile, chimney-style range hood that will add style and value to any kitchen. Available in stainless steel and black stainless steel finishes for improved durability and easy cleaning. Complete with a 600-CFM blower, ICON Touch® controls, LumiLight LED lighting, and Zephyr exclusive Airflow Control Technology™ (ACT™). Now available with an optional ADA-compliant remote control.
About Zephyr
Since the launch of its first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
5-Speed* 600 CFM Blower
- A powerful blower that is efficient and quiet
ICON Touch™ Controls
- Seamlessly blends into the hood for an elegant design
LumiLight LED Lighting
- It helps illuminate your cooking area with its dual-level LED lighting
Aluminum Mesh Filters
- Dishwasher-safe and efficient in trapping cooking residue and grease
Airflow Control Technology™
- This exclusive feature can limit the blower's maximum CFM to meet local standards
Auto Delay-Off
- Allows you to keep your hood venting for 5 minutes after cooking is complete, and then automatically powers your hood off
Warranty
- 3-years Parts, 1-year Labor
Additional Features
- Low-Profile Body
- Dual-Level Lighting
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
- Optional Wireless Remote Control
Note
- *When ACT™ is enabled the maximum speed levels will change. ACT 390 CFM = 4 speeds and ACT 290 CFM = 3 speeds
Specifications
GTIN
UPC
646328010705
Capacity
Permanent Air Flow Reduction
Yes
CFM
600 CFM
Sones
6
Duct Size
6 Inch
Noise Level
6 Sones
Smart
WiFi
No
Dimensions
Height
27 Inch
Depth
22 1/16 Inch
Width
35 7/16 Inch
Appearance
Blower Type
Internal
Blower Included
Yes
Venting Type
Convertible
Mounting Type
Wall Mount
Glass Canopy
No
Color
Stainless Steel
Type
Hood
Style
Chimney Style
Technical Details
Approved for Outdoor Use
No
Voltage
120 Volts
Energy Star Rated
No
Features
Delay Shut-Off
Yes
Lights
LED
Lighting Levels
2
Dishwasher Safe Filters
Yes
Filter Type
Mesh
Number of Fan Speeds
5
Product Information
MPN
ZAN-M90DS
Model
ZANM90DS
Brand
Zephyr
Blower Performance
Blower CFM (Min. - Max.)
200 - 600
Sones (Min. - Max.)
1 - 6
ACT 390 CFM (Min. - Max.)
200 - 390
ACT 290 CFM (Min. - Max.)
200 - 290
Overview
ADA Compliant
Yes, w/ Remote Accessory
Extension Duct Cover Option
Yes, Up to 12' Ceiling
Recirculating Option
Yes
Filters
Aluminum Mesh x2
Dual-Level Lighting
Yes
Lighting
LumiLight LED, 6W x2
Auto Delay-Off
Yes
Speed Levels
5
Controls
ICON Touch®
ACT™ Technology
390, 290
Color
Stainless Steel
Size
36"
Warranty
Labor
1-Year
Parts
3-Years
Product Dimensions
Mounting Height Range
26" - 34"
Height Max.
48 1/2"
Height Min. Recirc.
31"
Height Min. Ducted
27"
Depth
22 1/16"
Width
35 7/16"
Duct Specifications
AC Power
120V, 60Hz at Max. 4A
Vertical Internal Blower
6" Round
Duct Discharge
Vertical
General
Series
Core Collection
Manufacturer
Zephyr
