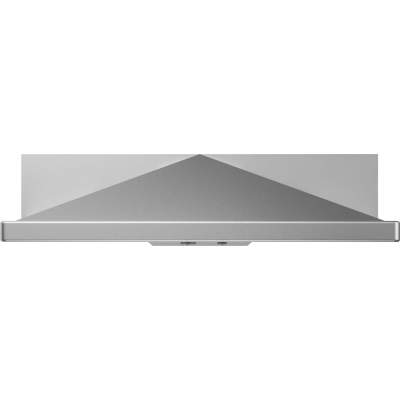

About the Zephyr ZPYE30BS
- Pyramid Under Cabinet Range Hood with 3-Speed/400 CFM Blower
- Mechanical Slide Controls
- Dual-Level LED Lighting
- Aluminum Mesh Filters
- Perimeter Aspiration System
- Optional Recirculating Kit
- UL Listed: 30" Width
Brand:
CFM:
400 CFM
Venting Type:
Convertible
Style:
Standard Hood
Width:
30"
Height:
7 3/8"
Depth:
21"
Classic architectural lines meet at an apex to energize the familiar look of the chimney-style under-cabinet hood. This expressive yet utilitarian design is upgraded with a perimeter aspiration panel (PAS) for the ultimate fusion of style and performance. Dual-level LumiLight LED lights illuminate the surface below, while the 12-inch depth ensures simple operation and a true fit with popular cabinet styles.
About Zephyr
Since the launch of their first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency-and raised the bar with self-cleaning, filter-free technologies never before seen. They now enter the world of wine & beverage cooling.
Key Features
3-Speed Levels
- Allow you to adjust ventilation to meet your needs
400 CFM Blower
- Quickly clear your kitchen of unwanted air pollution
Mechanical Slide Controls
- Offers simple operation
Dual-Level LumiLight LED Lighting
- High and Low levels of light offer the perfect mood option for your kitchen
Dishwasher Safe Aluminum Mesh Filters
- Filter out residue and grease from cooking.
Perimeter Aspiration System
- Increases air velocity and improves the capture of cooking contaminants
Vertical or Horizontal Ducting
- It gives the performance and flexibility you need
Additional Features
- Optional Ductless Recirculating Kit
- UL Listed
Specifications
Smart
WiFi
No
Bluetooth
No
Overview
Color
Stainless Steel
Auto Delay-Off
No
Controls
Mechanical Slide
Dual-Level Lighting
Yes
Speed Levels
3
Size
30"
Recirculating Option
Yes
Perimeter Aspiration System
Yes
Lighting
LumiLight LED, 6W x2
Filters
Aluminum Mesh x2
Warranty
Parts
3Years
Labor
1 Year
Blower Performance
Sones (Min. - Max.)
2 - 5
Blower Included
Yes
Blower CFM (Min. - Max.)
210 - 400
Dimensions
Width
30"
Mounting Height Range
24" - 32"
Height
7 3/8"
Depth
21"
Duct Specifications
Vertical Internal Blower
7" Round or 3 1/4" x 10"
Horizontal Internal Blower
3 1/4" x 10"
Dimensions
Width
30 Inch
Depth
21 Inch
Height
7 3/8 Inch
Technical Details
Voltage
120 Volts
Approved for Outdoor Use
No
Amps
15
ADA Compliant
No
Energy Star Rated
No
Appearance
Venting Type
Convertible
Type
Hood
Style
Standard Hood
Color
Stainless Steel
Blower Type
Internal
Blower Included
Yes
Mounting Type
Under Cabinet
Glass Canopy
No
Fingerprint Resistant
No
GTIN
UPC
646328009945
Electrical Specifications
AC Power
120V, 60Hz at Max. 2A
Capacity
Sones
5
CFM
400 CFM
Duct Size
7 Inch
Permanent Air Flow Reduction
No
Noise Level
5 Sones
General
Series
Core Collection
Manufacturer
Zephyr
Features
Delay Shut-Off
No
Dishwasher Safe Filters
Yes
Number of Fan Speeds
3
Lights
LED
Lighting Levels
2
Filter Type
Mesh
Product Information
Brand
Zephyr
MPN
ZPY-E30BS
Model
ZPYE30BS
