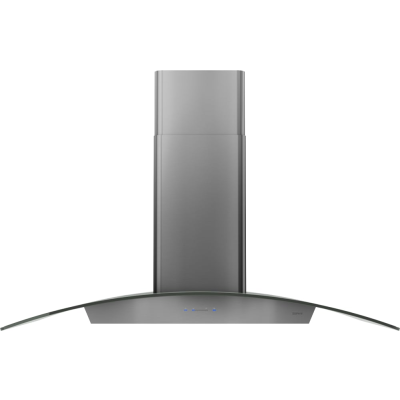

About the Zephyr ZREM90BBSGG
- Ravenna Island Mount Range Hood with 5-Speed 600 CFM Blower
- ICON Touch™ Controls
- LumiLight LED Lighting
- Aluminum Mesh Filters
- Airflow Control Technology™
- Auto Delay-Off
- Quick-Lock Installation
- Recirculating Option: 36 Inch - Black Stainless Steel w/ Smoke-Gray Glass
Brand:
CFM:
600 CFM
Venting Type:
Convertible
Style:
Chimney Style
Width:
35 3/16"
Height:
38"
Depth:
25 9/16"
The delicate curve of a smoke-gray glass canopy arching over your island cooktop will add elegance to your everyday cooking experience. The Ravenna features a sleek black stainless steel finish with an anti-smudge Titanium coating for extra durability and easy cleaning. Complete with Zephyr exclusive Airflow Control Technology™ (ACT™), ICON Touch® controls, LumiLight LED lighting, and a powerful - yet quiet - 600-CFM blower. Now available with an optional ADA-compliant remote control.
About Zephyr
Since the launch of its first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
5-Speed* 600 CFM Blower
- A powerful blower that is efficient and quiet
ICON Touch™ Controls
- Seamlessly blends into the hood for an elegant design
LumiLight LED Lighting
- It helps illuminate your cooking area with its dual-level LED lighting
Aluminum Mesh Filters
- Dishwasher-safe mesh filters effortlessly trap cooking grease, oil, and smoke from your kitchen
Airflow Control Technology™
- This exclusive feature can limit the blower's maximum CFM to meet local standards
Auto Delay-Off
- Allows you to keep your hood venting for 5 minutes after cooking is complete, and then automatically powers your hood off
Recirculating Option
- Non-ducted option available with add-on purchase
Warranty
- 3-years parts, 1-year labor
Additional Features
- Quick-Lock Installation System
- Curved Glass Canopy
- Dual-Level Lighting
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
Note
- *When ACT™ is enabled the maximum speed levels will change. ACT 390 CFM = 4 speeds and ACT 290 CFM = 3 speeds
Specifications
Smart
WiFi
No
Smart Accessory Required
No
Bluetooth
No
Overview
Dual-Level Lighting
Yes
Controls
ICON Touch®
Color
Black Stainless Steel w/ Smoke-Gray Glass
Auto Delay-Off
Yes
ACT™ Technology
390, 290
Duct Cover Extension Option
Yes, Up to 12' Ceiling
Filters
Aluminum Mesh x2
Lighting
LumiLight LED, 6W x2
Speed Levels
5
Recirculating Option
Yes
Quick-Lock Installation
Yes
Magnetic Duct Covers
Yes
Warranty
Parts
3 Years
Labor
1 Year
Blower Performance
Sones (Min. - Max.)
1 - 6
Blower CFM (Min. - Max.)
200 - 600
ACT 390 CFM (Min. - Max)
200 - 390
ACT 290 CFM (Min. - Max.)
200 - 290
Duct Specifications
Vertical Internal Blower
6" Round
AC POWER
120V, 60Hz at Max. 4A
Dimensions
Width
35 3/16 Inch
Depth
25 9/16 Inch
Height
38 Inch
Technical Details
Voltage
120 Volts
CEE Rating
Not Available
Approved for Outdoor Use
No
Amps
15
ADA Compliant
No
Energy Star Rated
No
Appearance
Venting Type
Convertible
Type
Hood
Style
Chimney Style
Color
Black Stainless Steel
Blower Type
Internal
Blower Included
Yes
Mounting Type
Island Mount
Glass Canopy
Yes
Fingerprint Resistant
No
GTIN
UPC
646328010781
Product Dimensions
Width
35 3/16"
Height
28 1/2" (min.) - 38" (max.)
Depth
25 9/16"
Capacity
Sones
6
CFM
600 CFM
Duct Size
6 Inch
Permanent Air Flow Reduction
Yes
Noise Level
6 Sones
General
Series
Core Collection
Manufacturer
Zephyr
Features
Delay Shut-Off
Yes
Dishwasher Safe Filters
Yes
Number of Fan Speeds
5
Lights
LED
Lighting Levels
2
Filter Type
Mesh
Product Information
Brand
Zephyr
MPN
ZRE-M90BBSGG
Model
ZREM90BBSGG
