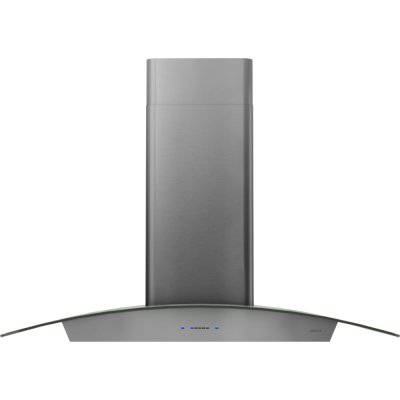

About the Zephyr ZRVE30CBSGG
- 30 Inch Ravenna Wall Mount Range Hood with 5-Speed 600 CFM Blower
- ICON Touch™ Controls
- Dual-Level LED Lighting
- Aluminum Mesh Filters
- Airflow Control Technology™
- Auto Delay-Off
- Optional Ductless Recirculating Kit: Black Stainless Steel with Smoke-Gray Glass Canopy
Brand:
CFM:
600 CFM
Venting Type:
Convertible
Style:
Chimney Style
Width:
29 15/16"
Height:
23"
Depth:
19 3/4"
The delicate curve of a glass canopy arching over your cooktop will add elegance to your everyday cooking experience. Featuring Zephyr's trend-setting black stainless steel, the Ravenna combines 21st-century know-how with timeless beauty. Featuring clear and smoke-gray glass canopy options, Airflow Control Technology (ACT™), ICON Touch® controls, LumiLight LED lighting, and a powerful - yet quiet - 600-CFM blower. Now available with an optional ADA-compliant remote control.
About Zephyr
Since the launch of its first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
5-Speed* 600 CFM Blower
- A powerful blower that is efficient and quiet
ICON Touch™ Controls
- Seamlessly blends into the hood for an elegant design
Dual-Level LumiLight LED Lighting
- It helps illuminate your cooking area with its dual-level LED lighting
Aluminum Mesh Filters
- Dishwasher-safe and efficient in trapping cooking residue and grease
Airflow Control Technology™
- An exclusive feature built into specific Zephyr hoods which can limit the maximum blower CFM to meet local code requirements
Auto Delay-Off
- Allows you to keep your hood venting for 5 minutes after cooking is complete, and then automatically powers your hood off
Warranty
- 3-years Parts, 1-year Labor
Additional Features
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
Note
- *When ACT™ is enabled the maximum speed levels will change. ACT 390 CFM = 4 speeds and ACT 290 CFM = 3 speeds
Specifications
GTIN
UPC
646328010873
Capacity
Duct Size
6 Inch
Sones
6
CFM
600 CFM
Noise Level
6 Sones
Smart
WiFi
No
Dimensions
Height
23 Inch
Depth
19 3/4 Inch
Width
29 15/16 Inch
Appearance
Blower Type
Internal
Blower Included
Yes
Venting Type
Convertible
Mounting Type
Wall Mount
Glass Canopy
Yes
Color
Black Stainless Steel
Type
Hood
Style
Chimney Style
Features
Number of Fan Speeds
5
Filter Type
Mesh
Dishwasher Safe Filters
Yes
Delay Shut-Off
Yes
Lights
LED
Lighting Levels
2
General
Series
Core Collection
Manufacturer
Zephyr
Technical Details
Approved for Outdoor Use
No
Voltage
120 Volts
Energy Star Rated
No
Blower Performance
ACT 390 CFM (Min. - Max.)
200 - 390
Sones (Min. - Max.)
1 - 6
Blower CFM (Min. - Max.)
200 - 600
ACT 290 CFM (Min. - Max.)
200 - 290
Features
Extension Duct Cover Option
Yes, Up to 12' Ceiling
Recirculating Option
Yes
Filters
Aluminum Mesh x1
Dual-Level Lighting
Yes
Lighting
LumiLight LED, 6W x2
Auto Delay-Off
Yes
Speed Levels
5
Controls
ICON Touch®
ACT™ Technology
390, 290
Duct Specifications
Duct Discharge
Vertical
Vertical Internal Blower
6" Round
AC Power
120V, 60Hz at Max. 4A
Product Information
MPN
ZRV-E30CBSGG
Model
ZRVE30CBSGG
Brand
Zephyr
Warranty
Labor
1 Year
Parts
3 Years
Dimensions
Net Depth
19 3/4"
Nominal Width
30"
Net Width
29 15/16"
Net Height
23" - 42 1/2"
