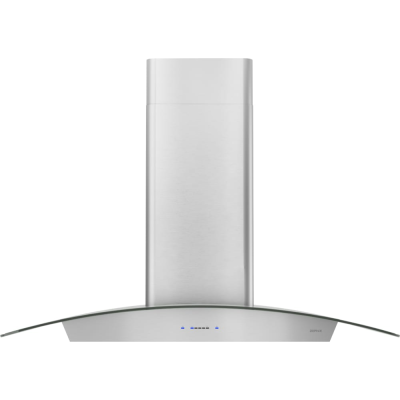

About the Zephyr ZRVM90CGC
- 36 Inch Wall Mount Range Hood with 5-Speed 600 CFM Blower
- ICON Touch™ Controls
- Dual-Level LED Lighting
- Aluminum Mesh Filters
- Airflow Control Technology™
- Auto Delay-Off
- Optional Ductless Recirculating Kit: Stainless Steel with Clear Glass Canopy
Brand:
CFM:
600 CFM
Venting Type:
Convertible
Style:
Chimney Style
Width:
35 1/2"
Height:
23"
Depth:
19 3/4"
The delicate curve of a glass canopy arching over your cooktop will add elegance to your everyday cooking experience. Featuring Zephyr's trend-setting black stainless steel, the Ravenna combines 21st-century know-how with timeless beauty. Featuring clear and smoke-gray glass canopy options, Airflow Control Technology (ACT™), ICON Touch® controls, LumiLight LED lighting, and a powerful - yet quiet - 600-CFM blower. Now available with an optional ADA-compliant remote control.
About Zephyr
Since the launch of its first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
5-Speed* 600 CFM Blower
- A powerful blower that is efficient and quiet
ICON Touch™ Controls
- Seamlessly blends into the hood for an elegant design
Dual-Level LumiLight LED Lighting
- It helps illuminate your cooking area with its dual-level LED lighting
Aluminum Mesh Filters
- Dishwasher-safe and efficient in trapping cooking residue and grease
Airflow Control Technology™
- An exclusive feature built into specific Zephyr hoods which can limit the maximum blower CFM to meet local code requirements
Auto Delay-Off
- Allows you to keep your hood venting for 5 minutes after cooking is complete, and then automatically powers your hood off
Warranty
- 3-years Parts, 1-year Labor
Additional Features
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
Note
- *When ACT™ is enabled the maximum speed levels will change. ACT 390 CFM = 4 speeds and ACT 290 CFM = 3 speeds
Specifications
Smart
WiFi
No
Features
ACT™ Technology
390, 290
Auto Delay-Off
Yes
Controls
ICON Touch®
Dual-Level Lighting
Yes
Speed Levels
5
Recirculating Option
Yes
Lighting
LumiLight LED, 6W x2
Filters
Aluminum Mesh x1
Extension Duct Cover Option
Yes, Up to 12' Ceiling
Warranty
Parts
3 Years
Labor
1 Year
Blower Performance
Sones (Min. - Max.)
1 - 6
Blower CFM (Min. - Max.)
200 - 600
ACT 390 CFM (Min. - Max.)
200 - 390
ACT 290 CFM (Min. - Max.)
200 - 290
Dimensions
Nominal Width
36"
Net Width
35 1/2"
Net Height
23" - 42 1/2"
Net Depth
19 3/4"
Dimensions
Width
35 1/2 Inch
Depth
19 3/4 Inch
Height
23 Inch
Technical Details
Voltage
120 Volts
Approved for Outdoor Use
No
Energy Star Rated
No
Appearance
Venting Type
Convertible
Type
Hood
Style
Chimney Style
Color
Stainless Steel
Blower Type
Internal
Blower Included
Yes
Mounting Type
Wall Mount
Glass Canopy
Yes
GTIN
UPC
646328010927
Duct Specifications
Vertical Internal Blower
6" Round
Duct Discharge
Vertical
AC Power
120V, 60Hz at Max. 4A
Features
Dishwasher Safe Filters
Yes
Delay Shut-Off
Yes
Filter Type
Mesh
Number of Fan Speeds
5
Lights
LED
Lighting Levels
2
Capacity
CFM
600 CFM
Duct Size
6 Inch
Sones
6
Noise Level
6 Sones
Product Information
Brand
Zephyr
MPN
ZRV-M90CGC
Model
ZRVM90CGC
General
Series
Core Collection Ravenna
Manufacturer
Zephyr
