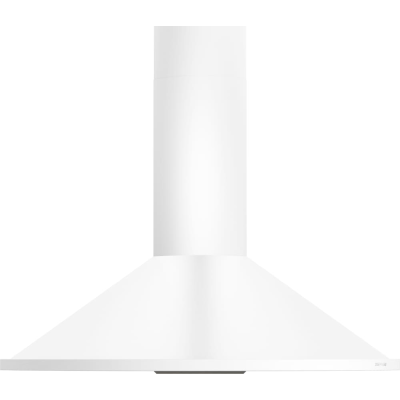

About the Zephyr ZSAE30FW
- 30 Inch Wall Mount Range Hood with 5-Speed/600 CFM Blower
- ICON Touch™ Controls
- LumiLight LED Lighting
- Aluminum Mesh Filters
- Airflow Control Technology™: White
Brand:
CFM:
600 CFM
Venting Type:
Convertible
Style:
Chimney Style
Width:
29 15/16"
Height:
28"
Depth:
19 1/2"
Savona's semi-circular surfaces accentuate this range hood's European design with delicate reflections of light and shadows. Available in stainless steel, powder-coated black, white, and the sleek alternative to stainless steel: black stainless steel. Savona features a robust 600-CFM blower, dual-level LumiLight LED lighting, ICON Touch® controls, and Zephyr exclusive Airflow Control Technology (ACT™). Now available with an optional ADA-compliant remote control.
About Zephyr
Since the launch of its first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
5-Speed* 600 CFM Blower
- A powerful blower that is efficient and quiet
ICON Touch™ Controls
- Seamlessly blends into the hood for an elegant design
Dual-Level LumiLight LED Lighting
- It helps illuminate your cooking area with its dual-level LED lighting
Aluminum Mesh Filters
- Dishwasher-safe and efficient in trapping cooking residue and grease
Airflow Control Technology™
- An exclusive feature built into specific Zephyr hoods which can limit the maximum blower CFM to meet local code requirements
Auto Delay-Off
- Allows you to keep your hood venting for 5 minutes after cooking is complete, and then automatically powers your hood off
Warranty
- 3-years Parts, 1-year Labor
Additional Features
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
Note
- *When ACT™ is enabled the maximum speed levels will change. ACT 390 CFM = 4 speeds and ACT 290 CFM = 3 speeds
Specifications
Smart
WiFi
No
Features
ADA Compliant
Yes, w/ Remote Accessory
ACT™ Technology
390, 290
Auto Delay-Off
Yes
Controls
ICON Touch®
Speed Levels
5
Recirculating Option
Yes
Lighting
LumiLight LED, 6W x2
Filters
Aluminum Mesh x2
Extension Duct Cover Option
Yes, Up to 12' Ceiling
Dual-Level Lighting
Yes
Warranty
Parts
3 Years
Labor
1 Year
Blower Performance
Sones (Min. - Max.)
1 - 6
Blower CFM (Min. - Max.)
200 - 600
ACT 390 CFM (Min. - Max.)
200 - 390
ACT 290 CFM (Min. - Max.)
200 - 290
Dimensions
Nominal Width
30"
Net Width
29 15/16"
Net Height
28" - 45"
Net Depth
19 1/2"
Dimensions
Width
29 15/16 Inch
Depth
19 1/2 Inch
Height
28 Inch
Technical Details
Voltage
120 Volts
Approved for Outdoor Use
No
Energy Star Rated
No
Appearance
Venting Type
Convertible
Type
Hood
Style
Chimney Style
Color
White
Blower Type
Internal
Blower Included
Yes
Mounting Type
Wall Mount
Glass Canopy
No
GTIN
UPC
646328011009
Duct Specifications
Vertical Internal Blower
6" Round
Duct Discharge
Vertical
AC Power
120V, 60Hz at Max. 4A
Capacity
Duct Size
6 Inch
CFM
600 CFM
Sones
6
Noise Level
6 Sones
Features
Dishwasher Safe Filters
Yes
Delay Shut-Off
Yes
Filter Type
Mesh
Number of Fan Speeds
5
Lights
LED
Lighting Levels
2
Product Information
Brand
Zephyr
MPN
ZSA-E30FW
Model
ZSAE30FW
General
Series
Core Collection Savona
Manufacturer
Zephyr
