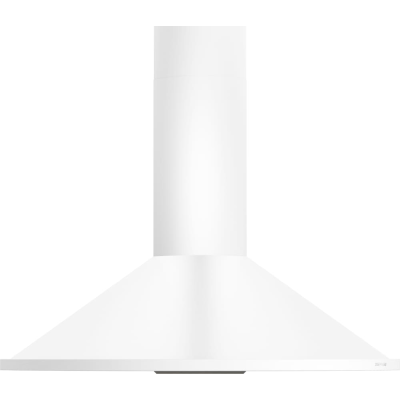

About the Zephyr ZSAM90FW
- 36 Inch Wall Mount Range Hood with 5-Speed/600 CFM Blower
- ICON Touch™ Controls
- LumiLight LED Lighting
- Aluminum Mesh Filters
- Auto Delay-Off and Airflow Control Technology™: White
Brand:
CFM:
600 CFM
Venting Type:
Convertible
Style:
Chimney Style
Width:
35 7/16"
Height:
28"
Depth:
19 1/2"
Savona's semi-circular surfaces accentuate this range hood's European design with delicate reflections of light and shadows. Available in stainless steel, powder-coated black, white, and the sleek alternative to stainless steel: black stainless steel. Savona features a robust 600-CFM blower, dual-level LumiLight LED lighting, ICON Touch® controls, and our exclusive Airflow Control Technology (ACT™). Now available with an optional ADA-compliant remote control.
About Zephyr
Zephyr is a brand of kitchen appliances that specializes in range hoods, wine coolers, beverage centers, and refrigerators. Zephyr was founded in 1997 by a family of entrepreneurs who wanted to create innovative and high-quality ventilation products for the home. Zephyr's mission is to design beyond expectations, combining craftsmanship, technology, and style to create products that elevate the kitchen experience.
Key Features
5-Speed/600 CFM Blower
- A powerful blower that is efficient and quiet
ICON Touch™ Controls
- Seamlessly blends into the hood for an elegant design
Dual-Level LumiLight LED Lighting
- It helps illuminate your cooking area with its dual-level LED lighting
Aluminum Mesh Filters
- Dishwasher-safe and efficient in trapping cooking residue and grease
Airflow Control Technology™
- An exclusive feature built into specific Zephyr hoods that can limit the maximum blower CFM to meet local code requirements
Auto Delay-Off
- Allows you to keep your hood venting for 5 minutes after cooking is complete, and then automatically powers your hood off
Additional Features
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
Note
- *When ACT™ is enabled the maximum speed levels will change. ACT 390 CFM = 4 speeds and ACT 290 CFM = 3 speeds
Specifications
GTIN
UPC
646328011047
Capacity
Duct Size
6 Inch
Sones
6
CFM
600 CFM
Noise Level
6 Sones
Smart
WiFi
No
Dimensions
Height
28 Inch
Depth
19 1/2 Inch
Width
35 7/16 Inch
Appearance
Blower Type
Internal
Blower Included
Yes
Venting Type
Convertible
Mounting Type
Wall Mount
Glass Canopy
No
Color
White
Type
Hood
Style
Chimney Style
Features
Number of Fan Speeds
5
Filter Type
Mesh
Delay Shut-Off
Yes
Lights
LED
Lighting Levels
2
Dishwasher Safe Filters
Yes
General
Series
Core Collection Savona
Manufacturer
Zephyr
Technical Details
Approved for Outdoor Use
No
Voltage
120 Volts
Energy Star Rated
No
Blower Performance
ACT 390 CFM (Min. - Max.)
200 - 390
Sones (Min. - Max.)
1 - 6
Blower CFM (Min. - Max.)
200 - 600
ACT 290 CFM (Min. - Max.)
200 - 290
Features
ADA Compliant
Yes, w/ Remote Accessory
Extension Duct Cover Option
Yes, Up to 12' Ceiling
Recirculating Option
Yes
Filters
Aluminum Mesh x2
Dual-Level Lighting
Yes
Lighting
LumiLight LED, 6W x2
Auto Delay-Off
Yes
Speed Levels
5
Controls
ICON Touch®
ACT™ Technology
390, 290
Duct Specifications
Duct Discharge
Vertical
AC Power
120V, 60Hz at Max. 4A
Vertical Internal Blower
6" Round
Product Information
MPN
ZSA-M90FW
Model
ZSAM90FW
Brand
Zephyr
Warranty
Labor
1 Year
Parts
3 Years
Dimensions
Net Depth
19 1/2"
Nominal Width
36"
Net Width
35 7/16"
Net Height
28" - 45"
