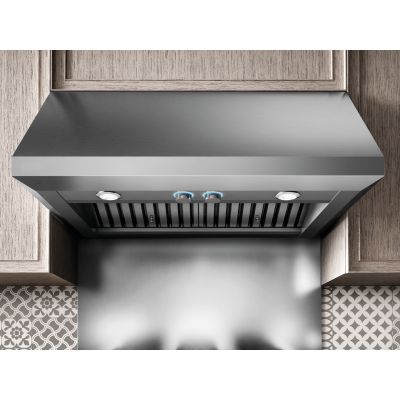

About the Elica ECL148S4
- Calabria Series Wall Mount Cabinet Range Hood with 4-Speed Internal Blower
- Dishwasher Safe Angled Baffle Filters
- Backlit Retractable Controls
- Hush System: 48" Stainless Steel (1200 CFM)
Brand:
CFM:
1,200 CFM
Venting Type:
Ducted
Style:
Canopy Pro Style
Width:
48"
Height:
18"
Depth:
25"
Key Features
Hush System: Minimum 3.1 Sones, Maximum 7.7 Sones
- Proprietary sound dampening system effectively reduces noise levels by over 35%
Replaceable LED
- Unlike most integrated options, Arezzo is equipped with consumer LED bulbs that enable homeowners to replace bulbs in seconds
Seamless Craftmanship
- Made from heavy gauge stainless steel, this seamless construction offers a refined and elegant look
Stainless Steel Filters
- Baffle Filters with grease collectors are designed for high volumes of cooking; increased air flow improves efficiency and stainless design makes clean up easier
Professional Grade Performance
- Featuring up to 1200 CFM (for 36", 42" 48" models), this range hood can handle every need from consumer to commercial
Heat Guard Technology
- Senses extreme temperatures (> 158 Degrees) and automatically adjusts fan speeds to highest settings
Specifications
Capacity
Noise Level
8.5 Sones
Duct Size
10 Inch
Permanent Air Flow Reduction
No
CFM
1,200 CFM
Sones
8.5
Features
Number of Fan Speeds
4
Filter Type
Baffle
Dishwasher Safe Filters
Yes
Lights
LED
Delay Shut-Off
No
Appearance
Blower Type
Internal
Blower Included
Yes
Venting Type
Ducted
Mounting Type
Wall Mount
Color
Stainless Steel
Type
Hood
Style
Canopy Pro Style
Glass Canopy
No
Fingerprint Resistant
No
Product Information
Model
ECL148S4
Brand
Elica
Warranty Terms
3 years ? Elica appliances are backed by a comprehensive three-year warranty from the date of original installation. For full warranty details visit https://registerproductus.elica.com/US-
Warranty
Warranty
Two (2) Years Parts & In-Home Labor. Earn an additional One (1) Year of Parts & In-Home Labor by registering on elica.com
Kits
In-line Blower Kit (1200 CFM)
KIT0154387
External Blower Kit (1200 CFM)
KIT0153054
Heat Lamp Kit
KIT0155111
Stainless Back Splash
KIT0142870
Long Chimney Extension Kit 6"
KIT02164
Long Chimney Extension Kit 12"
KIT02165
GTIN
UPC
190603001938
Additional Specs
Grease Filter
Dishwasher-Safe, Professional Stainless Steel Baffle
Dimensions
48" W x 25" D x 18" H
Blower Type (internal)
1200 CFM (4-speed)
Noise (sones)
8.5 Sones
Finish
Stainless Steel
Controls
Fully Retractable Rotating Knobs with Blue Backlight
Illumination
LED Lights, 6.5 W, 3000 K, 540 Lumen/Lamp
Duct Transition
10" Round with BackDraft Damper (top and rear)
Installation Type
Ducted Installation Only
Electrical
120V - 60 Hz, 926 W
Smart
Smart Accessory Required
No
WiFi
No
Technical Details
Voltage
120 Volts
Amps
15
Approved for Outdoor Use
No
General
Series
Professional Calabria
Manufacturer
Elica
Dimensions
Height
18 Inch
Depth
25 Inch
Width
48 Inch
