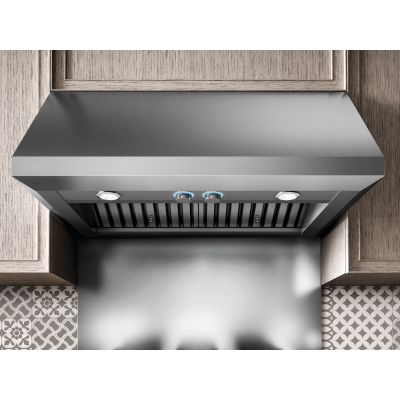

About the Elica ECL630S4
- Calabria Series Wall Mount Cabinet Range Hood with 4-Speed Internal Blower
- Dishwasher Safe Angled Baffle Filters
- Backlit Retractable Controls
- Hush System: 30" Stainless Steel (600 CFM)
Key Features
Hush System: Minimum 3.1 Sones, Maximum 7.7 Sones
- Proprietary sound dampening system effectively reduces noise levels by over 35%
Replaceable LED
- Unlike most integrated options, Arezzo is equipped with consumer LED bulbs that enable homeowners to replace bulbs in seconds
Seamless Craftmanship
- Made from heavy gauge stainless steel, this seamless construction offers a refined and elegant look
Stainless Steel Filters
- Baffle Filters with grease collectors are designed for high volumes of cooking; increased air flow improves efficiency and stainless design makes clean up easier
Professional Grade Performance
- Featuring up to 1200 CFM (for 36", 42" 48" models), this range hood can handle every need from consumer to commercial
Heat Guard Technology
- Senses extreme temperatures (> 158 Degrees) and automatically adjusts fan speeds to highest settings
Specifications
GTIN
UPC
190603001945
Additional Specs
Finish
Stainless Steel
Noise (sones)
7 Sones
Blower Type (internal)
600 CFM (4-speed)
Dimensions
30" W x 25" D x 18" H
Controls
Fully Retractable Rotating Knobs with Blue Backlight
Illumination
LED Lights, 6.5 W, 3000 K, 540 Lumen/Lamp
Grease Filter
(2) Dishwasher-Safe, Professional Stainless Steel Baffle
Electrical
120V - 60 Hz, 463 W
Installation Type
Ducted Installation Only
Duct Transition
10" Round with BackDraft Damper (top and rear)
Capacity
CFM
600 CFM
Noise Level
7 Sones
Duct Size
10 Inch
Permanent Air Flow Reduction
No
Sones
7
Appearance
Fingerprint Resistant
No
Glass Canopy
No
Blower Type
Internal
Blower Included
Yes
Venting Type
Ducted
Mounting Type
Wall Mount
Color
Stainless Steel
Type
Hood
Style
Canopy Pro Style
Dimensions
Width
30 Inch
Height
18 Inch
Depth
25 Inch
Product Information
Warranty Terms
3 years ? Elica appliances are backed by a comprehensive three-year warranty from the date of original installation. For full warranty details visit https://registerproductus.elica.com/US-
Model
ECL630S4
Brand
Elica
Warranty
Warranty
Two (2) Years Parts & In-Home Labor. Earn an additional One (1) Year of Parts & In-Home Labor by registering on elica.com
Kits
Stainless Back Splash
KIT0142864
Heat Lamp Kit
KIT0155106
Long Chimney Extension Kit 12"
KIT02160
Long Chimney Extension Kit 6"
KIT02159
Smart
Smart Accessory Required
No
WiFi
No
Features
Number of Fan Speeds
4
Filter Type
Baffle
Dishwasher Safe Filters
Yes
Delay Shut-Off
No
Lights
LED
Technical Details
Voltage
120 Volts
Amps
15
Approved for Outdoor Use
No
General
Series
Professional Calabria
Manufacturer
Elica
