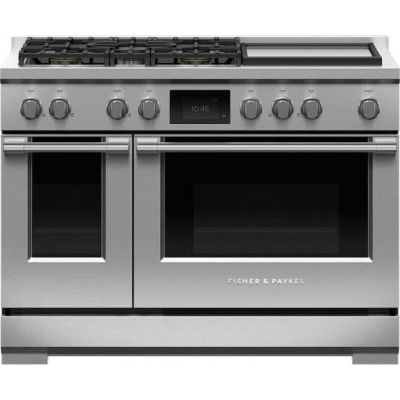

About the Fisher Paykel RDV3485GDL
- 48 Inch Freestanding Professional Dual Fuel Smart Range with 5 Sealed Dual Flow Burners™
- Dual Oven
- 6.9 Cu. Ft. Total Oven Capacity
- Continuous Grates
- Pyrolytic Self-Clean
- Griddle
- Telescopic Sliding Shelves
- 15 Main Oven Functions: Liquid Propane
Brand:
Style:
Freestanding
Width:
47 7/8"
Height:
36 3/4"
Depth:
29 1/8"
Capacity:
4.8 Cu. Ft.
Convection:
Yes
Self Clean:
Yes
Griddle:
Yes
Grill:
No
Fuel Type:
Dual Fuel
Volts:
240 Volts
Amps:
50
Key Features
5 Sealed Dual Flow Burners™
- Sealed Dual Flow Burners™ deliver rangetop power up to 19,000 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
Dual Oven with 6.9 Cu. Ft. Total Oven Capacity
- Two independently operating cavities provide a large total capacity of 4.8 cu. ft. in the main cavity and 2.1 cu. ft. in the secondary.
Continuous Grates
- Slide pots and pans easily around the surface to a different burner.
Pyrolytic Self-Clean
- The self-clean function reduces grease and food residue to an easily removable light ash and the cooktop simply needs a quick wipe to keep it looking good as new.
Griddle
- Have more area for cooking on the built-in griddle that produces up to 24000 BTU of heat.
Telescopic Sliding Shelves
- The telescopic sliding shelf slides back and forth making it safe and easy to move trays in and out of the oven and can be easily removed to change position for cooking or complete removal for cleaning.
15 Main Oven Functions
- The main oven features 15 functions, including bake, clean, convection bake, convection broil, self cleaning, and true convection.
Accessories Included
- Flat vent trim
Manuals & Downloads
RDV3485GDL Specification Sheet
Specifications
GTIN
UPC
822843829729
Technical Details
ADA Compliant
Yes
Amps
50
LP Conversion
No
Voltage
240 Volts
Oven Features
Air Fry
Yes
Broiler
Yes
Broiler Element Location
Top
Broiler Pan Included
No
Convection
Yes
Convection Type
True European
Delay Bake
No
Digital Temperature Display
Yes
Fast Preheat
No
Glide Rack(s)
Yes
Interior Oven Light
Yes
No Preheat
No
Proof Mode
Yes
Racks
4
Removable Door
Yes
Sabbath Mode
Yes
Self-Cleaning
Yes
Self-Cleaning Type
High Heat
Sous Vide
No
Steam Clean
No
Temperature Probe
Yes
Timer
Yes
Product Information
Brand
Fisher & Paykel
Model
RDV3485GDL
MPN
RDV3-485GD-L
Warranty Terms
2 years ? Fisher & Paykel appliances are backed by a limited two-year warranty. For full warranty details visit https://www.fisherpaykel.com/us/help-and-support/warranty-information#Limite
Burner Output
Burner 1 Output
11,500 BTU (Back Left)
Burner 2 Output
11,500 BTU (Back Right)
Burner 3 Output
19,000 BTU (Center)
Burner 4 Output
15,000 BTU (Front Left)
Burner 5 Output
15,000 BTU (Front Right)
Burner 6 Output
24,000 BTU (Griddle)
Power Burner
Yes
Simmer Burner
Yes
Shabbos Compliance
Certification
STAR-K
Requires Shabbos Keeper
No
Appearance
Clock
Yes
Color
Stainless Steel
Cooktop
Sealed Burner
Cooktop Control Type
Knobs
Double Oven
Yes
Drawer
None
Fingerprint Resistant
No
Fuel Subtype
Liquid Propane
Fuel Type
Dual Fuel
Oven Control Type
Digital and Knobs
Stainless Steel Handle
No
Style
Freestanding
Viewing Window
Yes
Gas Cooktop Features
Continuous Grates
Yes
Cooktop Accessory
Griddle
Dishwasher Safe Grates
Yes
French Top
No
Griddle
Yes
Grill
No
Dimensions
Depth
29 1/8 Inch
Exterior Width
48 Inch
Height
36 3/4 Inch
Width
47 7/8 Inch
Capacity
Number of Burners
5
Primary Oven Capacity
4.8 Cu. Ft.
Secondary Oven Capacity
2.1 Cu. Ft.
Smart
Smart Accessory Required
No
WiFi
Yes
Recommended Back Guards Ventilation
Combustible situation
BGRV3-3048H
Non combustible situation
BGRV2-3048 / BGRV2-1248
Recommended hood
HCB48-12_N (48" Professional Range Hood, Dual Blower)
Capacity
Shelf positions
5
Total capacity primary oven
4.8 cu. ft
Total capacity second oven
2.1 cu. ft.
Secondary Oven Features
3/4 Extension racks
2
Concealed element
Yes
Electronic oven control
Yes
Food probe
Yes
Internal light
Yes
Cleaning
Dishwasher proof grates
Yes
Pyrolytic self-clean
Yes
Burner Ratings
Maximum burner power
19,000 BTU
Power back left
11,500 BTU
Power back right
11,500 BTU
Power centre
19,000 BTU
Power front left
15,000 BTU
Power front right
15,000 BTU
Power griddle
24,000 BTU
Total cooktop power
96,000 BTU
Safety
ADA compliant
Yes
Gas Requirements
Fitting and pipe
1/2 NPT, min. 5/8" âˆ... flex line
Supply Pressure (LPG)
11" to 14" W.C
Power Requirements
Amperage
50A
Rated current
50A
Supply frequency
60Hz
Secondary Oven Functions
Air fry
Yes
Bake
Yes
Classic bake
Yes
Convection bake
Yes
Convection broil
Yes
Maxi broil
Yes
Number of secondary oven functions
11
Pastry bake
Yes
Pizza bake
Yes
Rapid proof
Yes
Roast
Yes
Warm
Yes
Controls
Dial with illuminated halo
Yes
Electric circuit
4 wire
High-resolution display
Yes
Metal illuminated dials
Yes
Multi-language interface
Yes
Precise cooking with a food probe
Yes
Recipe and food-based functions
Yes
Sabbath mode
Yes
Tilting touch screen interface
Yes
Wi-Fi connectivity
Yes
Product Dimensions
Depth
29 1/8"
Height
35 3/4" - 36 3/4"
Width
47 7/8"
Oven Features
Concealed element
Yes
Electronic oven control
Yes
Full-extension telescopic sliding shelves
Yes
Internal light
Yes
Titanium coated, illuminated metal dials
Yes
Oven Performance
Bake power
4600
Broil
3600W
Main oven - True convection power
2500W
Oven Functions
Dehydrate
Yes
Pastry bake
Yes
Warm
Yes
Accessories
Square handle option
AH-R48
Rangetop Features
Sealed Dual Flow Burners™
5
Sealed range top
Yes
Vent trim included
Yes
AH-R48 Handle Dimensions
Depth
1 11/16"
Height
2 9/16"
Length - Horizontal Handle
31 11/16" (RH Door), 15 39/64" (LH Door)
Length - Vertical Handle
N/A
