About the Fisher Paykel RDV3486GDL
- 48 Inch Freestanding Professional Dual Fuel Smart Range with 6 Sealed Burners
- Double Oven
- 6.9 Cu. Ft. Total Capacity
- Self-Cleaning Mode
- Sabbath Mode
- Convection Oven
- Griddle
- ADA Compliant
- Star-K Certified: Liquid Propane
Brand:
Style:
Freestanding
Width:
47 7/8"
Height:
36 3/4"
Depth:
29 1/8"
Capacity:
4.8 Cu. Ft.
Convection:
Yes
Self Clean:
Yes
Griddle:
Yes
Grill:
No
Fuel Type:
Dual Fuel
Volts:
240/208 Volts
Amps:
50

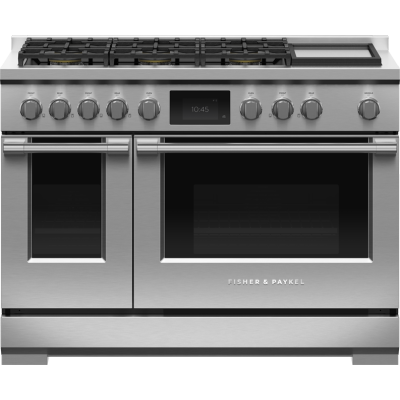

This 48" Fisher & Paykel dual fuel freestanding range gives you cooking flexibility with six high-powered burners, a griddle, and two oven cavities. The versatile Sealed Dual Flow Burners™ can provide seriously fast boiling and a precise 140°F full surface simmer. The cooktop has sealed burners and an encapsulated cooking surface with a commercial-style stainless steel finish. It is designed for easy access to any burner with grates you can smoothly slide pots across. Control dials have halo-illumination glowing white - heating up; orange - temperature reached; red - self-cleaning mode. The ovens have true convection and electronic oven control for precise and consistent temperatures.
About Fisher & Paykel
Since its founding in 1934, they have grown into a global, design-led company of more than 3,000 people. Designed and engineered in New Zealand, their products are sold in 50 countries around the world. Their design heritage is founded on a pioneering spirit and a culture of curiosity that has challenged conventional appliance design to consistently deliver products tailored to human needs. For them, legacy is about looking into the future, while ensuring what they develop today is aligned with the fundamental principles of sustainable design. They are committed to ongoing research and development. Their culture is one of open innovation, which allows people to work collaboratively to find insights and ideas that connect with their customers and respect our planet.
Key Features
Cook with Confidence
- The touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you've been cooking all your life or just starting out.
- Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe. The screen tilts for improved ergonomics and optimal visibility while cooking.
Generous Capacity
- Two independently operating cavities provide a large total capacity of 4.8 cu. ft. in the main cavity and 2.1 cu. ft. in the secondary.
- That's enough room for a 32 lb turkey in one oven, and your sides in the other.
Cooking Flexibility
- Each of the 15 oven functions in the main cavity and 11 in the secondary have been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles.
- The handy food probe helps you monitor your progress.
Cooktop Power
- Sealed dual flow burners deliver cooktop power up to 19,000 BTU for seriously fast boiling, and precise 140°F full surface, low temperature cooking with the gentlest of flames.
Design Quality
- This range has craftsmanship in every detail, with real stainless steel, cast-iron trivets, and beautifully weighted, halo illuminated dials.
- Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.
Easy To Clean
- The oven features a self-cleaning function and self-clean-proof side racks, which don't need to be removed when using this function.
Specifications
Accessories
Adjustable feet covers
Yes
Branded coin end cap
Yes
Square handle option
AH-R48
AH-R48 Handle Dimensions
Height
2 9/16"
Depth
1 11/16"
Length - Vertical Handle
N/A
Length - Horizontal Handle
31 11/16" (RH Door), 15 39/64" (LH Door)
Rangetop Features
Sealed range top
Yes
Vent trim included
Yes
Rangetop Performance
Number of burners
6
Burner Ratings
Maximum burner power
19,000 BTU
Power back centre
13,000 BTU
Power back left
13,000 BTU
Power back right
13,000 BTU
Power front centre
15,000 BTU
Power front left
19,000 BTU
Power front right
15,000 BTU
Power griddle
15,000 BTU
Total cooktop power
103,000 BTU
Capacity
Shelf positions
5
Total capacity
6.9 cu. ft.
Primary oven
4.8 cu. ft.
Secondary oven
2.1 cu. ft.
Cleaning
Easy clean porcelain basepan
Yes
Controls
Dial with illuminated halo
Yes
Dual control oven dials
Yes
High-resolution display
Yes
Multi-language interface
Yes
Precise cooking with a food probe
Yes
Recipe and food-based functions
Yes
Sabbath mode
Yes
Tilting touch screen interface
Yes
Wi-Fi connectivity
Yes
Gas Requirements
Fitting and pipe
1/2 NPT, min. 5/8" âˆ... flex line
Supply Pressure (LPG)
11" to 14" W.C
Oven Features
Concealed element
Yes
Electronic oven control
Yes
Food probe
Yes
Full-extension telescopic sliding shelves
Yes
Internal light
Yes
Large broil pan
Yes
Self-clean proof side racks
Yes
True convection
Yes
Oven Functions
Air fry
Yes
Bake
Yes
Broil
Yes
Classic bake
Yes
Clean
Yes
Convection Broil
Yes
Convection bake
Yes
Dehydrate
Yes
Maxi Broil
Yes
Number of functions
15
Pastry bake
Yes
Pizza bake
Yes
Rapid proof
Yes
Roast
Yes
Slow cook
Yes
True convection
Yes
Warm
Yes
Secondary Oven Features
3/4 Extension racks
2
Concealed element
Yes
Electronic oven control
Yes
Food probe
Yes
Internal light
Yes
Secondary Oven Functions
Air fry
Yes
Bake
Yes
Classic bake
Yes
Convection bake
Yes
Convection broil
Yes
Maxi broil
Yes
Number of secondary oven functions
11
Pastry bake
Yes
Pizza bake
Yes
Rapid proof
Yes
Roast
Yes
Warm
Yes
Power Requirements
Rated current
50A
Supply frequency
60Hz
Supply voltage
120-240V
Product Dimensions
Width
47 7/8"
Depth
29 1/8"
Height
35 3/4" - 36 3/4"
Recommended Back Guards Ventilation
Combustible situation
BGRV3-3048H
Non combustible situation
BGRV2-3048 / BGRV2-1248
Recommended hood
HCB48-12_N (48" Professional Range Hood, Dual Blower)
Safety
ADA compliant
Yes
Warranty
Parts and labor
Limited 2 years
Product Information
Brand
Fisher & Paykel
Model
RDV3486GDL
Warranty Terms
2 years ? Fisher & Paykel appliances are backed by a limited two-year warranty. For full warranty details visit https://www.fisherpaykel.com/us/help-and-support/warranty-information#Limite
Appearance
Fuel Type
Dual Fuel
Fuel Subtype
Liquid Propane
Style
Freestanding
Color
Stainless Steel
Fingerprint Resistant
No
Stainless Steel Handle
Yes
Cooktop
Sealed Burner
Cooktop Control Type
Knobs
Oven Control Type
Digital and Knobs
Viewing Window
Yes
Double Oven
Yes
Drawer
None
Clock
Yes
Dimensions
Width
47 7/8 Inch
Depth
29 1/8 Inch
Height
36 3/4 Inch
Exterior Width
48 Inch
Shabbos Compliance
Sabbath Mode
Yes
Certification
STAR-K
Requires Shabbos Keeper
No
Smart
WiFi
Yes
Smart Accessory Required
No
Capacity
Number of Burners
6
Primary Oven Capacity
4.8 Cu. Ft.
Secondary Oven Capacity
2.1 Cu. Ft.
Burner Output
Simmer Burner
Yes
Power Burner
Yes
Burner 1 Output
13,000 BTU (Back Center)
Burner 2 Output
13,000 BTU (Back Left)
Burner 3 Output
13,000 BTU (Back Right)
Burner 4 Output
15,000 BTU (Front Center)
Burner 5 Output
19,000 BTU (Front Left)
Burner 6 Output
15,000 BTU (Front Right)
Burner 7 Output
15,000 BTU (Griddle)
Gas Cooktop Features
Continuous Grates
Yes
Dishwasher Safe Grates
Yes
Cooktop Accessory
Griddle
Grill
No
Griddle
Yes
French Top
No
Oven Features
Digital Temperature Display
Yes
Timer
Yes
Delay Bake
Yes
Fast Preheat
Yes
Convection
Yes
Proof Mode
Yes
Self-Cleaning
Yes
Self-Cleaning Type
High Heat
Steam Clean
No
Racks
4
Glide Rack(s)
Yes
Temperature Probe
Yes
Broiler Pan Included
Yes
Interior Oven Light
Yes
Removable Door
Yes
Air Fry
Yes
Sous Vide
No
Technical Details
ADA Compliant
Yes
LP Conversion
No
Amps
50
Voltage
240/208 Volts
GTIN
UPC
822843829781
EAN
0822843823864
General
Manufacturer
Fisher Paykel
