About the Monogram ZTSX1DPSNSS
- 30 Inch Smart Electric Single Oven with WiFi Connectivity
- Certified Sabbath Mode
- Smart Home System Integration
- Precision Cooking Modes
- Scan-To-Cook
- True European Convection
- Direct Air Cooking System
- Ten-Pass Bake Element
- Temperature Probe
- Self-Clean
Brand:
Oven Style:
Single
Capacity:
5 Cu. Ft.
Convection:
Yes
Self Clean:
Yes
Color:
Stainless Steel
Width:
29 3/4"
Height:
28 11/16"
Cutout Width:
28 1/2"
Cutout Height:
27 1/4"
Fuel Type:
Electric
Volts:
240/208 Volts
Amps:
20
Edge-to-edge handles, polished stainless steel, and hand-finished
edges convey a sense of solidity and beauty. With this 30 Inch Smart Electric Built-In Oven, you can get more and better baking results. It features a ten-pass bake element to cover more surface area. The self-clean with steam clean feature gives you flexible options for thorough oven cleaning. Wi-Fi Connect allows you to control oven functions from anywhere inside or even outside your home using your smartphone or other web-enabled mobile devices.
About Monogram
Monogram is the experience. We're inspired by life and the way you live it. With high style, superior craftsmanship, and award-winning technology, our products raise the bar on what's possible in your kitchen.
Key Features
5.0 Cu. Ft. Capacity
- Easily accommodates even the largest meals.
Ten-Pass Bake Element
- Covers more surface area for more even baking results.
Eight-Pass Broil Element
- It provides complete coverage and even browning, even for large dishes.
Self-Clean with Steam Clean Options
- It gives you flexible options for thorough oven cleaning.
LCD Controls
- Allow you to adjust oven settings with little effort.
WiFi & Remote Enable and Voice Control
- Perfectly in sync with a busy lifestyle, Alexa or Google Home can be used to control an array of oven functions from both inside and outside the home.
Other Features
- No-Preheat Air Fry Mode
- Bake Option
- Broil Option
- Proof Option
- Dehydrate Option
- Warm Option
- Delay Time
- Star-K Certified
- ADA Compliant
- UL Listed
Manuals & Downloads
ZTSX1DPSNSS Specification Sheet
Key Features
Voice Control
Once programmed, you can use your voice to preheat the oven and more, all without raising a finger

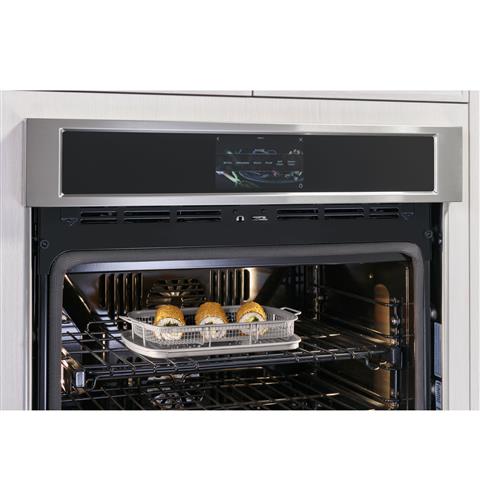

No-Preheat Air Fry
A must-have for health-conscious cooks, the No-Preheat Air Fry mode crisps food to crunchy perfection, without using oils or butter
Scan to cook
Innovative and time saving, scan-to-cook technology ensures that packaged foods are always prepared correctly. A simple scan of the barcode with a smartphone delivers consistently, delicious results
Twin Convection with Direct Air
Achieve beautifully cooked and delicious meals every time with this expertly designed, third heating element and fan combination

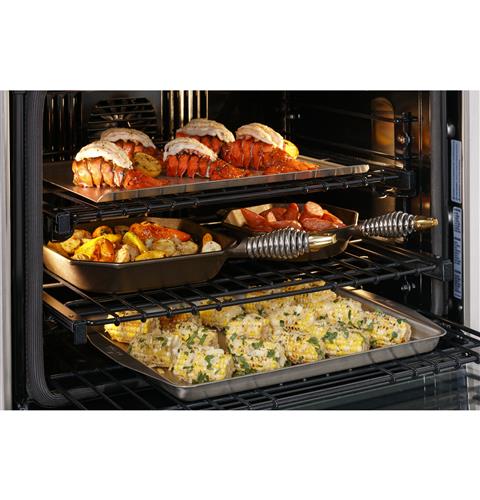

5.0 cubic foot capacity
Easily accommodates even the largest meals
Exclusive self-clean, (2 full-extension, 1 regular) oven racks
Glide in and out smoothly on stainless steel ball bearings, and are designed to be left in the oven during the self-clean cycle
Specifications
Product Information
Brand
Monogram
Model
ZTSX1DPSNSS
Warranty Terms
2 years ? Monogram Appliances are backed by a two year parts and labor warranty. For additional information, visit https://www.monogram.com/support
Smart
App Integration
Amazon Alexa Drop IFTTT Innit Sonos The Google Assistant
WiFi
Yes
Bluetooth
No
Alexa
Yes
Google Home
Yes
Remote Control
Yes
Remote Monitoring
Yes
Remote Diagnostics
No
Dash Replenishment
No
Smart Accessory Required
No
Dimensions
Exterior Height
28 11/16 Inch
Exterior Depth
27 5/16 Inch
Exterior Width
29 3/4 Inch
Cutout Width
28 1/2 Inch
Cutout Depth
23 1/2 Inch
Cutout Height
27 1/4 Inch
Depth to Handle
27 5/16 Inch
Specifications:
Series
Statement
Steam Oven
No
Appearance
Fuel Type
Electric
Style
Single
Microwave
No
Speed Oven
No
French Door Oven
No
Color
Stainless Steel
Control Type
Touch Sensor
Viewing Window
Yes
Drawer
None
Clock
Yes
Stainless Steel Handle
Yes
Handless
No
Capacity
Capacity
5 Cu. Ft.
Oven Racks
3
Oven Features
Timer
Yes
Delay Bake
Yes
Fast Preheat
No
Convection
Yes
Proof Mode
Yes
Sabbath Mode
Yes
Self-Cleaning
Yes
Self-Cleaning Type
High Heat & Steam
Steam Clean
Yes
Glide Rack(s)
Yes
Broiler
Yes
Broiler Pan Included
No
Interior Oven Light
Yes
Digital Temperature Display
Yes
Convection Type
True European
Temperature Probe
Yes
Air Fry
Yes
No Preheat
Yes
Broiler Element Location
Top
Technical Details
Star-K Certified
Yes
ADA Compliant
Yes
Approved for Outdoor Use
No
Amps
20
Voltage
240/208 Volts
Undercounter Installable
Yes
Wattage
4,500 Watts
GTIN
UPC
084691841975
EAN
0084691841975
Specifications
Overall Depth Including Handle
27 5/16"
Overall Height
28 11/16"
Overall Width
29 3/4"
Oven Door Clearance
20 9/16"
Overall Oven Interior Capacity
5.0 cu. ft.
Oven Interior Dimensions (W x H x D)
25" x 17 3/8" x 20 1/4"
Minimum Cabinet Width
30"
Minimum Cabinet Depth
24"
Minimum Base Support
220 lbs.
Cutout Width
Min 28 1/2" / Max 28 5/8"
Cutout Height
Min 27 1/4" / Max 27 5/16"
Cutout Depth
Min 23 1/2"
Volts/Hertz/Amps
240/208 V AC, 60 Hz, 20A
Conduit Length
48" (72" available special order: WB18T10398)
Electrical Rating
3.4 kW at 208V / 4.5 kW at 240V
Shipping Weight
208 lbs.
Appearance
Handle
Statement Collection
Design Style
Statement Collection
Handle Color
Stainless Steel
Color Appearance
Stainless Steel
Installation
Flush Appearance, Over Warming Drawer, Side-by-Side, Under Built-In Advantium, Under Built-In Microwave, Under Cooktop, Under Hearth Oven, Undercounter
Frameless Oven Door(s)
Stainless Steel
Power / Ratings
Hertz
60
Bake Wattage
2850W
Broiler Wattage
4300W
Convection Wattage
2400W
KW Rating at 208V
3.4
KW Rating at 240V
4.5
Amp Rating at 208V
20
Amp Rating at 240V
20
Electrical Requirements
240V/208V; 60Hz; 20A
Features
Fuel Type
Electric
Collection
EcoBalance, Statement
Product Type
Single Oven
Configuration
Single Oven
Control Type
7" Full-Color Touch LCD Screen
WiFi Connect
Built-In
Cooking Technology
Convection
Cooking System
Twin-Fan, True European Convection with Direct Air, Variable Speed, Reverse Air Convection
Oven Features
10-Pass Bake Element, 10-Pass Dual Broil Element, Closed Door Broiling
Oven Interior
2 Halogen Interior Oven Lights, Black Gloss Finish, True Hidden Bake Element
Oven Cleaning Type
Self-Clean with Steam Clean Option
Cleaning Time
Variable with Delay Clean Option
Oven Cooking Modes
Convection Bake Multi-Rack, Convection Broil Hi/Lo, Convection Roast, Dehydrate, Keep Warm, No-Preheat Air Frying, Precision Cooking Modes, Proof, Thermal Bake, Thermal Broil Hi/Lo
Oven Rack Features
1 Self-Clean Heavy-Duty Rack, 2 Self-Clean Heavy-Duty Full Extension Oven Racks, Ladder-Rack Positions
Oven Rack Positions
6
Oven Control Features
12-Hour Shut-Off Capability, Audible Preheat Signal, Auto Recipe Conversion, Control Lock Capability, Cook Time, C or F Programmable, Delay Time, Electronic Clock & Kitchen Timer, Mis-Wire Detection, Proof Mode, Remote Enabled, Sabbath Mode, Temperature P
Self-Clean Oven Door Lock
Automatic
Steam Wash
Yes
Smart Home & Connectivity
Smart Home App Compatible
Yes
Smart Home Device Compatible
WiFi powered by SmartHQ
Connected Capabilities
Amazon Alexa, Fresco, Google Home, IFTTT, Innit, Sonos, The Google Assistant
Weights & Dimensions
Net Weight
166 lbs.
Cabinet Width
30"
Overall Width
29.75"
Overall Height
28.6875"
Overall Depth
27.3125"
Cutout Dimensions (W x H x D)
28-5/8" x 27-5/16" x 23-1/2"
Oven Interior Dimensions (W x H x D)
25" x 17-3/8" x 20 1/4"
Approximate Shipping Weight
184 lbs.
Capacity
Total Capacity
5 cu. ft.
Warranty
Labor Warranty
Limited 2-year entire appliance
Parts Warranty
Limited 2-year entire appliance
Warranty Notes
See written warranty for full details
Accessories
Optional Accessories
ZX30VT1 Flush Vent Trim Accessory
Certifications
ADA Compliant
Yes
General
Manufacturer
Monogram
