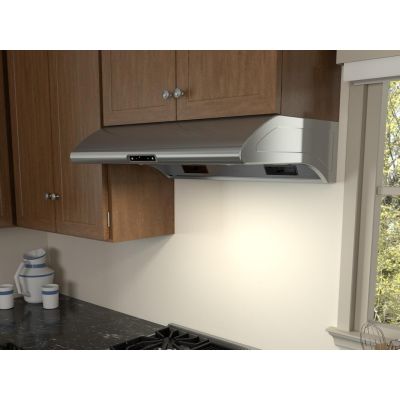

About the Zephyr AK2100CS
- 30 Inch Under Cabinet Range Hood with 6-Speed/850 CFM Blower
- Capacitive Touch Controls
- LED Light Strip
- Filter-less Self-Cleaning System
- Quiet Speed Setting
- ACT Technology: Stainless Steel
Brand:
CFM:
850 CFM
Venting Type:
Ducted
Style:
Standard Hood
Width:
29 3/4"
Height:
7 7/8"
Depth:
20 3/4"
The Zephyr Typhoon Series Under Cabinet Rangehood is not only good-looking but packed with powerful, virtually noise-free 850-CFM blowers. It includes a convenient self-cleaning system along with a tri-level LED Light Strip that invites you and your guests to a warm respite from every day, as well as a Quiet Speed Setting (QSS) and ACT™ Technology.
About Zephyr
Since the launch of their first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
6-Speed
- Allow you to adjust ventilation to meet your needs.
850 CFM Blower
- Remove smoke and odor with ease with a powerful internal blower.
Capacitive Touch Controls
- Offer simple operation.
LED Light Strip
- Tri levels of light offer the perfect mood option for your kitchen.
Vertical or Horizontal Ducting
- It gives the performance and flexibility you need.
- Additional Features
- Tri-Level Lighting
- Filter-less Self-Cleaning System
- Low-Profile Body
- Value Driven
- Quiet Speed Setting
- Airflow Control Technology (ACT) Technology
- Multiple Color Options
- Longer Warranty than Competitors
- UL Listed
AK2100CS Specification Sheet
Specifications
Smart
WiFi
No
Bluetooth
No
Dash Replenishment
No
Remote Control
No
Overview
Auto Delay-Off
Yes
ACT Technology
Yes
Color
Stainless Steel
Controls
Capacitive Touch
Tri-Level Lighting
Yes
Speed Levels
6
Size
30"
Self-Cleaning
Yes
Removable Safety Grilles
2
Recirculating Option
No
Quiet Speed Setting (QSS)
Yes
Lighting
LED Light Strip, 6W x2
Warranty
Parts
10 Years
Labor
1 Year
Blower Performance
Sones (Min. - Max.)
0.9 - 5
Blower CFM (Min. - Max.)
250 - 850
ACT 390 Sones (Min. - Max.)
0.9 - 2.5
ACT 390 CFM (Min. - Max.)
250 - 390
ACT 290 Sones (Min. - Max.)
0.9 - 1.5
ACT 290 CFM (Min. - Max.)
250 - 290
Dimensions
Width
29 3/4"
Height
7 7/8"
Depth
20 3/4"
Optional Accessories
Make-Up Air Kit
MUA008A
Damper, 7" Round
AK00067
Dimensions
Width
29 3/4 Inch
Height
7 7/8 Inch
Depth
20 3/4 Inch
Technical Details
Voltage
120 Volts
CEE Rating
Not Available
Approved for Outdoor Use
No
Amps
5
ADA Compliant
No
Energy Star Rated
No
Appearance
Venting Type
Ducted
Type
Hood
Style
Standard Hood
Color
Stainless Steel
Blower Type
Internal
Blower Included
Yes
Mounting Type
Under Cabinet
Fingerprint Resistant
No
GTIN
UPC
646328008603
EAN
0646328008603
Electrical Specifications
AC Power
120V, 60Hz at Max. 2A
Duct Specifications
Vertical Internal Blower
7" Round or 3 1/4" x 10"
Horizontal Internal Blower
3 1/4" x 10"
Capacity
Sones
5
CFM
850 CFM
Permanent Air Flow Reduction
Yes
Noise Level
5 Sones
Duct Size
10 Inch
Specifications:
Series
Core Collection Power Typhoon
Product Information
Brand
Zephyr
Model
AK2100CS
Features
Delay Shut-Off
Yes
Number of Fan Speeds
6
Lights
LED
Lighting Levels
3
General
Manufacturer
Zephyr
