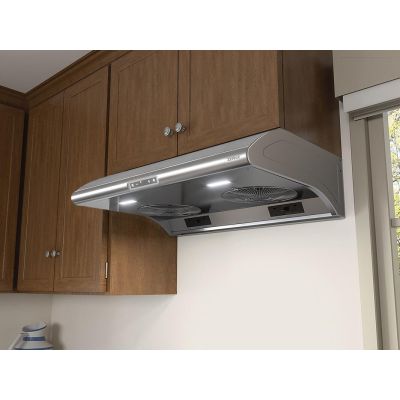

About the Zephyr AK2148CS
- 48 Inch Under Cabinet Range Hood with 6-Speed/850 CFM Blower
- Capacitive Touch Controls
- Halogen Lighting
- Filter-less Self-Cleaning System
- Airflow Control Technology™
- Low-Profile Body
- Auto Delay-Off
- UL Listed
Brand:
CFM:
850 CFM
Venting Type:
Ducted
Style:
Standard Hood
Width:
47 11/16"
Height:
7 7/8"
Depth:
20 3/4"
One of our founding models, now with an updated look, we crafted a smooth curvature then upped the volume with powerful, virtually noise-free 850-CFM blowers. A convenient self-cleaning system along with dimmable halogen lights invite you and your guests to a warm respite from the everyday. Available in black, white, and stainless steel. Now with Quiet Speed Setting (QSS) and ACT™ technology.
About Zephyr
Since the launch of their first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected-by deliberately seeking to change the marketplace. Zephyr was first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency-and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
6-Speed
- Allow you to adjust ventilation to meet your needs.
850 CFM Blower
- Remove smoke and odor with ease with a powerful internal blower.
Capacitive Touch Controls
- Features smooth and easy to clean surface.
Halogen Lighting
- Offers the perfect mood option for your kitchen.
Filter-less Self-Cleaning System
- A powerful centrifugal blower automatically flushes out and liquefies cooking residue within the internal housing.
- Dishwasher safe residue cups collect the excess grease until you are ready to empty.
Airflow Control Technology™ (ACT™)
- Limits the maximum blower CFM to meet local code requirements.
Low-Profile Body
- Delivers stunning design and quality performance.
Auto Delay-Off
- Clears the air and powers down after 5 minutes.
Dual-Level Lighting
- Provides the capability to switch ballast between high-mode and low-mode operation.
Vertical or Horizontal Ducting
- It gives the performance and flexibility you need.
- Additional Features
- Longer Warranty than Competitors
- Multiple Color Options
- Optional Recirculating Kit
- Value Driven
Manuals & Downloads
AK2148CS Specification Sheet
Specifications
GTIN
EAN
0646328008665
UPC
646328008665
Overview
Tri-Level Lighting
Yes
Color
Stainless Steel
Self Cleaning
Yes
Recirculating Option
No
Removable Safety Grilles
2
Lighting
LumiLight LED, 6W x2
Auto Delay-Off
Yes
Quiet Speed Setting (QSS)
Yes
Speed Levels
6
Controls
Capacitive Touch
ACT™ Technology
Yes
Size
48"
Technical Details
Approved for Outdoor Use
No
Voltage
120 Volts
CEE Rating
Not Available
Energy Star Rated
No
ADA Compliant
No
Features
Delay Shut-Off
Yes
Lights
LED
Lighting Levels
3
Number of Fan Speeds
6
Capacity
Sones
5
Permanent Air Flow Reduction
Yes
CFM
850 CFM
Noise Level
5 Sones
Blower Performance
Blower CFM (Min. - Max.)
250 - 850
Sones (Min. - Max.)
0.9 - 5
ACT 290 Sones (Min. - Max.)
0.9 - 1.5
ACT 290 CFM (Min. - Max.)
250 - 290
ACT 390 Sones (Min. - Max.)
0.9 - 2.5
ACT 390 CFM (Min. - Max.)
250 - 390
Specifications:
Series
Core Collection Power Typhoon
Dimensions
Mounting Height Range
24" - 32"
Height
7 7/8"
Depth
20 3/4"
Width
47 11/16"
Electrical Specifications
AC Power
120V, 60Hz at Max. 2A
Duct Specifications
Horizontal Internal Blower
3 1/4" x 10"
Vertical Internal Blower
7" Round or 3 1/4" x 10"
Smart
Smart Accessory Required
No
Bluetooth
No
WiFi
No
Optional Accessories
Damper, 7" Round
AK00067
Make-Up Air Kit
MUA008A
Warranty
Parts
10 Years
Labor
1 Year
Dimensions
Height
7 7/8 Inch
Depth
20 3/4 Inch
Width
47 11/16 Inch
Appearance
Blower Type
Internal
Blower Included
Yes
Venting Type
Ducted
Mounting Type
Under Cabinet
Glass Canopy
No
Fingerprint Resistant
No
Color
Stainless Steel
Type
Hood
Style
Standard Hood
Product Information
MPN
AK2148CS
Model
AK2148CS
Brand
Zephyr
General
Manufacturer
Zephyr
