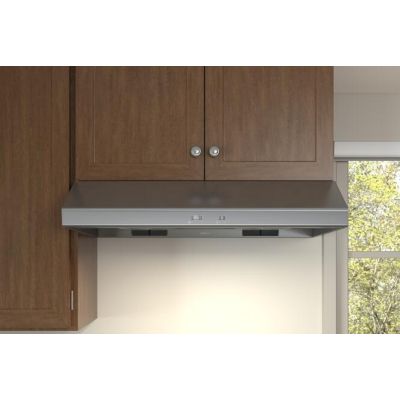

About the Zephyr AK6500CS
- 30 Inch Under Cabinet Range Hood with 3-Speed/600 CFM Blower
- Mechanical Slide Controls
- Dual-Level LED Lighting
- Filter-Less Self-Cleaning System
- UL Listed: Stainless Steel
Brand:
CFM:
600 CFM
Venting Type:
Ducted
Style:
Standard Hood
Width:
29 3/4"
Height:
6 3/8"
Depth:
22 1/4"
Modern, clean lines provide a perfect complement to any interior, while centrifugal blowers liquefy cooking residue without complex filters to make clean up a snap. Available in black, white, stainless steel, and black stainless finishes.
About Zephyr
Since the launch of their first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected-by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
3-Speed
- Allow you to adjust ventilation to meet your needs.
600 CFM Blower
- Quickly clear your kitchen of unwanted air pollution.
Mechanical Slide Controls
- Offers simple operation.
Dual-Level LumiLight LED Lighting
- High and Low levels of light offer the perfect mood option for your kitchen.
Filter-Less Self-Cleaning System
- A powerful centrifugal blower automatically flushes out and liquefies cooking residue within the internal housing.
- Dishwasher-safe residue cups collect the excess grease until you are ready to empty.
Low-Profile Body
- Delivers stunning design and quality performance.
Vertical or Horizontal Ducting
- It gives the performance and flexibility you need.
- Additional Features
- Multiple Color Options
- Optional Make-Up Air Kit
- Value Driven
- UL Listed
AK6500CS Specification Sheet
Specifications
Smart
WiFi
No
Bluetooth
No
Overview
Color
Stainless Steel
Auto Delay-Off
No
Controls
Mechanical Slide
Dual-Level Lighting
Yes
Speed Levels
3
Size
30"
Self Cleaning
Yes
Removable Safety Grilles
2
Recirculating Option
No
Lighting
LumiLight LED, 6W x2
Warranty
Parts
10 Years
Labor
1 Year
Blower Performance
Sones (Min. - Max.)
1.5 - 5
Blower CFM (Min. - Max.)
290 - 600
Dimensions
Width
29 3/4"
Mounting Height Range
24" - 32"
Height
6 3/8"
Depth
22 1/4"
Duct Specifications
Vertical Internal Blower
6" Round or 3 1/4" x 10"
Horizontal Internal Blower
3 1/4" x 10"
Capacity
Sones
5
Permanent Air Flow Reduction
No
CFM
600 CFM
Noise Level
5 Sones
Duct Size
6 Inch
Dimensions
Width
29 3/4 Inch
Height
6 3/8 Inch
Depth
22 1/4 Inch
Technical Details
Voltage
120 Volts
CEE Rating
Not Available
Approved for Outdoor Use
No
ADA Compliant
No
Energy Star Rated
No
Appearance
Venting Type
Ducted
Type
Hood
Style
Standard Hood
Color
Stainless Steel
Blower Type
Internal
Blower Included
Yes
Mounting Type
Under Cabinet
Glass Canopy
No
Fingerprint Resistant
No
GTIN
UPC
646328009433
EAN
0646328009433
Electrical Specifications
AC Power
120V, 60Hz at Max. 2A
Specifications:
Series
Core Collection Power Cyclone
Product Information
Brand
Zephyr
Model
AK6500CS
Features
Delay Shut-Off
No
Number of Fan Speeds
3
Lights
LED
Lighting Levels
2
General
Manufacturer
Zephyr
