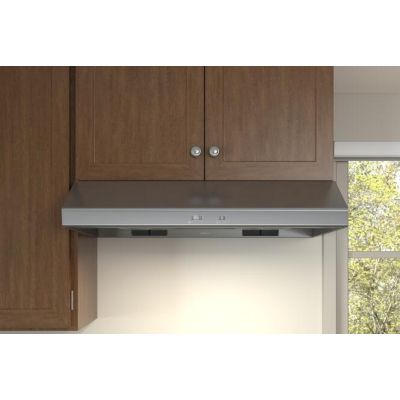

About the Zephyr AK6542CS
- 42 Inch Under Cabinet Range Hood with 3-Speed/600 CFM Blower
- Mechanical Slide Controls
- Dual-Level LED Lighting
- Filter-Less Self-Cleaning System
- UL Listed
Brand:
CFM:
600 CFM
Venting Type:
Ducted
Style:
Standard Hood
Width:
41 3/4"
Height:
6 3/8"
Depth:
22 1/4"
Modern, clean lines provide a perfect complement to any interior, while centrifugal blowers liquefy cooking residue without complex filters to make clean up a snap.
About Zephyr
Since the launch of their first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected-by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
3-Speed
- Allow you to adjust ventilation to meet your needs.
600 CFM Blower
- Quickly clear your kitchen of unwanted air pollution.
Mechanical Slide Controls
- Offers simple operation.
Dual-Level LumiLight LED Lighting
- High and Low levels of light offer the perfect mood option for your kitchen.
Filter-Less Self-Cleaning System
- A powerful centrifugal blower automatically flushes out and liquefies cooking residue within the internal housing.
- Dishwasher-safe residue cups collect the excess grease until you are ready to empty.
Low-Profile Body
- Delivers stunning design and quality performance.
Vertical or Horizontal Ducting
- It gives the performance and flexibility you need.
- Additional Features
- Multiple Color Options
- Optional Make-Up Air Kit
- Value Driven
- UL Listed
AK6542CS Specification Sheet
Specifications
GTIN
UPC
646328009518
EAN
0646328009518
Capacity
Duct Size
6 Inch
Sones
5
Permanent Air Flow Reduction
No
CFM
600 CFM
Noise Level
5 Sones
Smart
Bluetooth
No
WiFi
No
Dimensions
Height
6 3/8 Inch
Depth
22 1/4 Inch
Width
41 3/4 Inch
Appearance
Blower Type
Internal
Blower Included
Yes
Venting Type
Ducted
Mounting Type
Under Cabinet
Glass Canopy
No
Fingerprint Resistant
No
Color
Stainless Steel
Type
Hood
Style
Standard Hood
Features
Number of Fan Speeds
3
Lighting Levels
2
Lights
LED
Delay Shut-Off
No
Specifications:
Series
Core Collection Power Cyclone
Technical Details
Voltage
120 Volts
CEE Rating
Not Available
Energy Star Rated
No
ADA Compliant
No
Electrical Specifications
AC Power
120V, 60Hz at Max. 2A
Duct Specifications
Horizontal Internal Blower
3 1/4" x 10"
Vertical Internal Blower
6" Round or 3 1/4" x 10"
Blower Performance
Sones (Min. - Max.)
1.5 - 5
Blower CFM (Min. - Max.)
290 - 600
Overview
Self Cleaning
Yes
Recirculating Option
No
Removable Safety Grilles
2
Color
Stainless Steel
Size
42"
Controls
Mechanical Slide
Auto Delay-Off
No
Speed Levels
3
Dual-Level Lighting
Yes
Lighting
LumiLight LED, 6W x2
Dimensions
Mounting Height Range
24" - 32"
Width
41 3/4"
Depth
22 1/4"
Height
6 3/8"
Product Information
Model
AK6542CS
Brand
Zephyr
Warranty
Labor
1 Year
Parts
10 Years
General
Manufacturer
Zephyr
