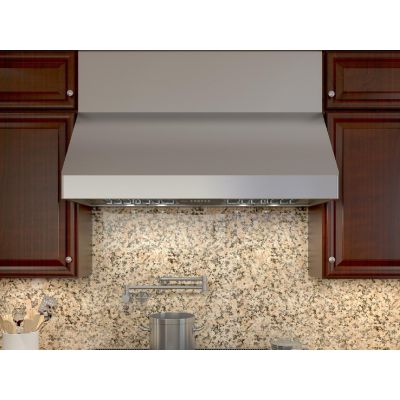

About the Zephyr AK7536CS
- Pro-Style Wall Hood with 6-Speed/650 CFM Blower
- Electronic Touch Controls
- LED Light Strip
- Professional Baffle Filters
- Airflow Control Technology™
- CleanAir Feature
- UL Listed: 36 Inch Width
Brand:
CFM:
650 CFM
Venting Type:
Ducted
Style:
Canopy Pro Style
Width:
35 7/8"
Height:
18"
Depth:
24"
Designed with professional-grade performance and seamless contours, the wall-mount Tempest II gives you serious cooking power, with 650 CFM or 1200 CFM blower options. Equipped with dishwasher-safe high airflow pro baffle filters, an optional wireless remote control, 6 speeds, and dual-level LED Light Strip, it's everything the demanding cook could ask for.
About Zephyr
Since the launch of their first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
6-Speed
- Allow you to adjust ventilation to meet your needs.
650 CFM Blower
- Remove smoke and odor with ease with a powerful internal blower.
Electronic Touch Controls
- Offer simple operation.
LED Light Strip
- Dual levels of light offer the perfect mood option for your kitchen.
Professional Baffle Filters
- Dishwasher-safe, high-airflow pro baffle filters help trap grease and remove smoke
Optional Wireless Remote Control
- Optional Wireless Remote that makes this hood ADA Compliant.
Airflow Control Technology™
- ACT is a feature built into Tempest II hoods with single internal blowers allowing you to limit the maximum blower CFM to meet local code requirements.
CleanAir Feature
- The feature turns the hood on speed 1 every four hours for 10 minutes to circulate the air
Additional Features
- Dual-Level Lighting
- Vertical or Horizontal Ducting
- Welded and Polished Body
- UL Listed
AK7536CS Specification Sheet
Specifications
Smart
WiFi
No
Bluetooth
No
Overview
Auto Delay-Off
Yes
ADA Compliant
Yes (with remote accessory)
ACT Technology
Yes, Single Blower Only
CleanAir Function
Yes
Color
Stainless Steel
Controls
Electronic Touch
Wireless Remote Control Option
Yes, RF
Speed Levels
6
Recirculating Option
Yes, Single Blower Only
Lighting
LED Light Strip, 6W x2
Filters
Pro Baffle x2
Dual-Level Lighting
Yes
Dual Internal Blower Option
Yes
Warranty
Parts
3 Years
Labor
1 Year
Blower Performance
Optional Dual Blower
400-1,200 CFM
Included Single Blower
200-650 CFM
ACT 390
200-390 CFM
ACT 290
200-290 CFM
Dimensions
Mounting Height Range
26" - 36"
Height
18"
Depth
24"
Duct Specifications
Vertical Single Internal Blower
8" Round
Vertical Dual Internal Blower
10" Round
Horizontal Single Internal Blower
3 1/4" x 10" or 8" Round
Horizontal Dual Internal Blower
10" Round
Dimensions
Width
35 7/8 Inch
Depth
24 Inch
Height
18 Inch
Technical Details
Voltage
120 Volts
CEE Rating
Not Available
Approved for Outdoor Use
No
Amps
5
ADA Compliant
Yes
Energy Star Rated
No
Appearance
Venting Type
Ducted
Type
Hood
Style
Canopy Pro Style
Color
Stainless Steel
Blower Type
Internal
Blower Included
Yes
Mounting Type
Wall Mount
Glass Canopy
No
Fingerprint Resistant
No
GTIN
UPC
646328008719
EAN
0646328008719
Electrical Specifications
AC POWER (Single Blower)
120V, 60Hz, Max. 5A
AC POWER (Dual Blower)
120V, 60Hz, Max. 9A
Capacity
Sones
6
CFM
650 CFM
Permanent Air Flow Reduction
Yes
Noise Level
6 Sones
Duct Size
8 Inch
Specifications:
Series
Pro Power Tempest II
Product Information
Brand
Zephyr
Model
AK7536CS
Features
Delay Shut-Off
Yes
Dishwasher Safe Filters
Yes
Number of Fan Speeds
6
Lights
LED
Lighting Levels
2
Filter Type
Baffle
General
Manufacturer
Zephyr
