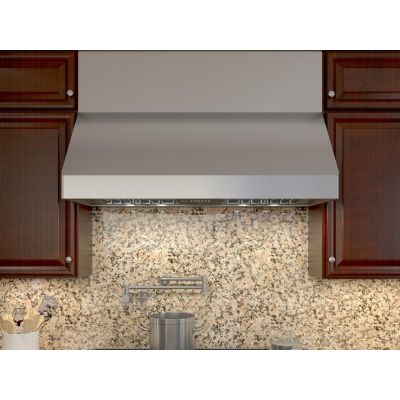

About the Zephyr AK7548CS
- 48 Inch Pro-Style Wall Mount Canopy Hood with 650 CFM Internal Blower
- Airflow Control Technology
- 6 Speed Electronic Touch Controls
- Halogen Lighting
Since the launch of their first hoods in 1997, Zephyr has remained true to their vision of delivering the unexpected-by deliberately seeking to change the marketplace. Zephyr was first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency-and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
Airflow Control Technology™ (ACT™)
- Feature built into Tempest II hoods with single internal blowers allowing you to limit the maximum blower CFM to meet local code requirements
Professional baffle filters
- Dishwasher-safe, high-airflow pro baffle filters help trap grease and remove smoke
CleanAir feature
- Feature turns the hood on speed 1 every four hours for 10 minutes to circulate the air
Additional Features
- Welded and polished body
AK7548CS Specification Sheet
Specifications
Smart
WiFi
No
Bluetooth
No
Overview
CleanAir Function
Yes
Auto Delay-Off
Yes
ADA Compliant
Yes (with remote accessory)
ACT Technology
Yes, Single Blower Only
Color
Stainless Steel
Controls
Electronic Touch
Wireless Remote Control Option
Yes, RF
Speed Levels
6
Recirculating Option
Yes, Single Blower Only
Lighting
LED Light Strip, 6W x2
Filters
Pro Baffle x2
Dual-Level Lighting
Yes
Dual Internal Blower Option
Yes
Warranty
Parts
3 Years
Labor
1 Year
Blower Performance
Optional Dual Blower
400-1,200 CFM
Included Single Blower
200-650 CFM
ACT 390
200-390 CFM
ACT 290
200-290 CFM
Dimensions
Mounting Height Range
26" - 36"
Height
18"
Depth
24"
Duct Specifications
Vertical Single Internal Blower
8" Round
Vertical Dual Internal Blower
10" Round
Horizontal Single Internal Blower
3 1/4" x 10" or 8" Round
Horizontal Dual Internal Blower
10" Round
Dimensions
Width
48 Inch
Depth
24 Inch
Height
18 Inch
Technical Details
Voltage
120 Volts
CEE Rating
Not Available
Approved for Outdoor Use
No
Amps
5
Energy Star Rated
No
Appearance
Venting Type
Ducted
Type
Hood
Style
Canopy Pro Style
Color
Stainless Steel
Blower Type
Internal
Blower Included
Yes
Mounting Type
Wall Mount
Glass Canopy
No
Fingerprint Resistant
No
GTIN
UPC
646328008733
EAN
0646328008733
Electrical Specifications
AC POWER (Single Blower)
120V, 60Hz, Max. 5A
AC POWER (Dual Blower)
120V, 60Hz, Max. 9A
Capacity
Sones
6
CFM
650 CFM
Permanent Air Flow Reduction
Yes
Noise Level
6 Sones
Duct Size
8 Inch
Features
Delay Shut-Off
Yes
Dishwasher Safe Filters
Yes
Number of Fan Speeds
6
Lights
LED
Lighting Levels
2
Filter Type
Baffle
Specifications:
Series
Pro Power Tempest II
Product Information
Brand
Zephyr
Model
AK7548CS
General
Manufacturer
Zephyr
