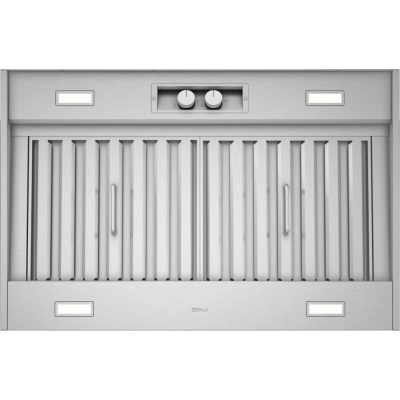

About the Zephyr AK9834BS
- Spruce Undercabinet Outdoor Insert Range Hood with 3-Speed 1200 CFM Blower
- Directional LumiLight LED Lighting
- Metallic Knob Controls
- Pro Baffle Filters
- Stainless Steel Grease Tray
- UL Listed: 36" Width
Brand:
CFM:
1,200 CFM
Venting Type:
Ducted
Style:
Standard Hood
Width:
34 3/8"
Height:
16 3/8"
Depth:
22 1/2"
The Spruce outdoor insert is a one-piece liner that can be installed in wall or island applications. Spruce includes corrosion-resistant, 304-grade stainless steel and powerful 1,200-CFM internal blowers to handle the most intense grilling. Also featuring 3-speed metallic knob controls, directional LumiLight LED lighting, and pro baffle filters to enhance airflow.
About Zephyr
Since the launch of its first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected-by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
3-Speed 1200 CFM Blower
- Powerful 3-Speed internal blower with speeds of 450 CFM (3.5 Sones) to 1200 CFM (9 Sones)
Directional LumiLight LED Lighting
- Dual-level LED lighting illuminates the surface for more visibility
Metallic Knob Controls
- Front knob controls give full access to all fan settings and lighting settings
Warranty
- 3 years parts, 1 year labor
Additional Features
- Pro Baffle Filters
- Stainless Steel Grease Tray
- UL Listed
Specifications
GTIN
UPC
646328010620
Smart
Bluetooth
No
WiFi
No
Dimensions
Height
16 3/8 Inch
Depth
22 1/2 Inch
Width
34 3/8 Inch
Appearance
Blower Type
Internal
Blower Included
Yes
Venting Type
Ducted
Mounting Type
Under Cabinet
Color
Stainless Steel
Type
Insert Liner
Style
Standard Hood
Capacity
CFM
1,200 CFM
Sones
3.5
Noise Level
3.5 Sones
Duct Size
10 Inch
Technical Details
Voltage
120 Volts
Amps
10
Features
Delay Shut-Off
No
Lights
LED
Lighting Levels
2
Filter Type
Baffle
Number of Fan Speeds
3
Product Information
Model
AK9834BS
Brand
Zephyr
Features
Filters
Pro Baffles x2
Dual-Level Lighting
Yes
Lighting
LumiLight LED, 6W x4
Auto Delay-Off
No
Speed Levels
5
Controls
Knobs
Color
Stainless Steel
Recirculating Option
No
Blower Performance
Sones (Min. - Max.)
3.5 - 9
Blower CFM (Min. - Max.)
450 - 1200
Blower Type
Internal
Duct Specifications
Vertical Internal Blower
10" Round
Warranty
Labor
1 Year
Parts
3 Years
Dimensions
Height
16 3/8"
Depth
22 1/2"
Width
34 3/8"
Mounting Height Range
30" - 36"
Electrical Specifications
AC Power
120V, 60Hz at Max. 6.5A
General
Series
Pro Collection
Manufacturer
Zephyr
