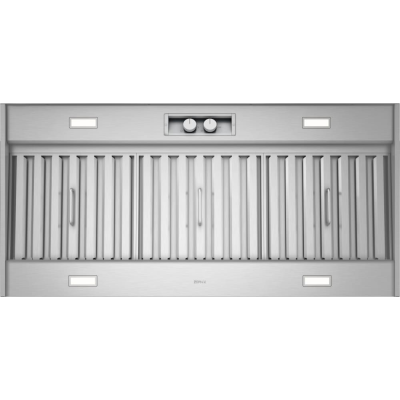

About the Zephyr AK9846BS
- Spruce Undercabinet Outdoor Insert Range Hood with 3-Speed 1200 CFM Blower
- Directional LumiLight LED Lighting
- Metallic Knob Controls
- Pro Baffle Filters
- Stainless Steel Grease Tray
- UL Listed: 48" Width
Brand:
CFM:
1,200 CFM
Venting Type:
Ducted
Style:
Standard Hood
Width:
46 3/8"
Height:
16 3/8"
Depth:
22 1/2"
The Spruce outdoor insert is a one-piece liner that can be installed in wall or island applications. Spruce includes corrosion-resistant, 304-grade stainless steel and powerful 1,200-CFM internal blowers to handle the most intense grilling. Also featuring 3-speed metallic knob controls, directional LumiLight LED lighting, and pro baffle filters to enhance airflow.
About Zephyr
Since the launch of its first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected-by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
3-Speed 1200 CFM Blower
- Powerful 3-Speed internal blower with speeds of 450 CFM (3.5 Sones) to 1200 CFM (9 Sones)
Directional LumiLight LED Lighting
- Dual-level LED lighting illuminates the surface for more visibility
Metallic Knob Controls
- Front knob controls give full access to all fan settings and lighting settings
Warranty
- 3 years parts, 1 year labor
Additional Features
- Pro Baffle Filters
- Stainless Steel Grease Tray
- UL Listed
Specifications
Smart
WiFi
No
Bluetooth
No
Features
Controls
Knobs
Color
Stainless Steel
Auto Delay-Off
No
Dual-Level Lighting
Yes
Filters
Pro Baffles x2
Speed Levels
5
Recirculating Option
No
Lighting
LumiLight LED, 6W x4
Warranty
Parts
3 Years
Labor
1 Year
Blower Performance
Sones (Min. - Max.)
3.5 - 9
Blower Type
Internal
Blower CFM (Min. - Max.)
450 - 1200
Dimensions
Width
46 3/8"
Mounting Height Range
30" - 36"
Height
16 3/8"
Depth
22 1/2"
Dimensions
Width
46 3/8 Inch
Depth
22 1/2 Inch
Height
16 3/8 Inch
Technical Details
Voltage
120 Volts
Amps
10
Appearance
Venting Type
Ducted
Type
Insert Liner
Style
Standard Hood
Color
Stainless Steel
Blower Type
Internal
Blower Included
Yes
Mounting Type
Under Cabinet
GTIN
UPC
646328010644
Electrical Specifications
AC Power
120V, 60Hz at Max. 6.5A
Duct Specifications
Vertical Internal Blower
10" Round
Features
Delay Shut-Off
No
Number of Fan Speeds
3
Lights
LED
Lighting Levels
2
Filter Type
Baffle
Capacity
CFM
1,200 CFM
Duct Size
10 Inch
Sones
3.5
Noise Level
3.5 Sones
Product Information
Brand
Zephyr
Model
AK9846BS
General
Series
Pro Collection
Manufacturer
Zephyr
