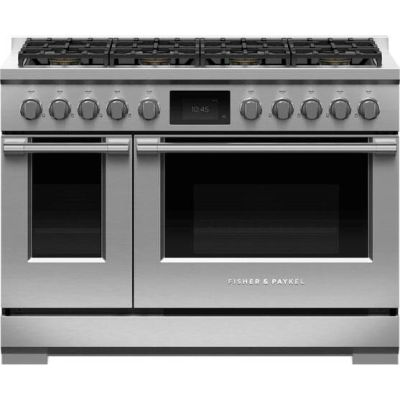

About the Fisher Paykel RDV3488L
- 48 Inch Freestanding Professional Dual Fuel Smart Range with 8 Sealed Dual Flow Burners™
- Dual Oven
- 6.9 Cu. Ft. Total Oven Capacity
- Continuous Grates
- Pyrolytic Self-Clean
- Telescopic Sliding Shelves
- 15 Main Oven Functions: Liquid Propane
Brand:
Style:
Freestanding
Width:
47 7/8"
Height:
36 3/4"
Depth:
29 1/8"
Capacity:
4.8 Cu. Ft.
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Dual Fuel
Volts:
240 Volts
Amps:
50
Key Features
8 Sealed Dual Flow Burners™
- Sealed Dual Flow Burners™ deliver rangetop power up to 19,000 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
Dual Oven with 6.9 Cu. Ft. Total Oven Capacity
- Two independently operating cavities provide a large total capacity of 4.8 cu. ft. in the main cavity and 2.1 cu. ft. in the secondary.
Continuous Grates
- Slide pots and pans easily around the surface to a different burner.
Pyrolytic Self-Clean
- The self-clean function reduces grease and food residue to an easily removable light ash and the cooktop simply needs a quick wipe to keep it looking good as new.
Telescopic Sliding Shelves
- The telescopic sliding shelf slides back and forth making it safe and easy to move trays in and out of the oven and can be easily removed to change position for cooking or complete removal for cleaning.
15 Main Oven Functions
- The main oven features 15 functions, including bake, clean, convection bake, convection broil, self cleaning, and true convection.
Accessories Included
- Flat vent trim
Manuals & Downloads
RDV3488L Specification Sheet
Specifications
Gas Requirements
Supply Pressure (LPG)
11" to 14" W.C
Fitting and pipe
1/2 NPT, min. 5/8" âˆ... flex line
Power Requirements
Supply frequency
60Hz
Rated current
50A
Gas Cooktop Features
Griddle
No
Continuous Grates
Yes
Cooktop Accessory
No Accessory
Grill
No
Dishwasher Safe Grates
Yes
French Top
No
Secondary Oven Functions
Number of secondary oven functions
11
Convection broil
Yes
Convection bake
Yes
Oven Features
Internal light
Yes
Full-extension telescopic sliding shelves
Yes
Concealed element
Yes
Electronic oven control
Yes
Controls
High-resolution display
Yes
Electric circuit
4 wire wire
Metal illuminated dials
Yes
Sabbath mode
Yes
Rangetop Features
Vent trim included
Yes
Sealed range top
Yes
Sealed Dual Flow Burners™
8
Cleaning
Pyrolytic self-clean
Yes
Dishwasher proof grates
Yes
Capacity
Total capacity
6.9 cu. ft.
Shelf positions
5
Burner Ratings
Total cooktop power
120,000 BTU
Power front left
19,000 BTU
Power front centre (2)
15,000 BTU
Power front centre
15,000 BTU
Power back right
13,000 BTU
Power back left
13,000BTU
Power back centre (2)
13,000 BTU
Power back centre
13,000 BTU
Power front right
19,000 BTU
Maximum burner power
19,000 BTU
Product Information
Brand
Fisher & Paykel
Model
RDV3488L
MPN
RDV3-488-L
Warranty Terms
2 years ? Fisher & Paykel appliances are backed by a limited two-year warranty. For full warranty details visit https://www.fisherpaykel.com/us/help-and-support/warranty-information#Limite
Appearance
Fuel Type
Dual Fuel
Fuel Subtype
Liquid Propane
Style
Freestanding
Color
Stainless Steel
Cooktop
Sealed Burner
Cooktop Control Type
Knobs
Oven Control Type
Digital and Knobs
Viewing Window
Yes
Double Oven
Yes
Drawer
None
Clock
Yes
Stainless Steel Handle
No
Fingerprint Resistant
No
Dimensions
Width
47 7/8 Inch
Depth
29 1/8 Inch
Height
36 3/4 Inch
Exterior Width
48 Inch
Smart
WiFi
Yes
Smart Accessory Required
No
Capacity
Number of Burners
8
Primary Oven Capacity
4.8 Cu. Ft.
Secondary Oven Capacity
2.1 Cu. Ft.
Burner Output
Simmer Burner
Yes
Power Burner
Yes
Burner 1 Output
19,000 BTU (Front Left)
Burner 2 Output
19,000 BTU (Front Right)
Burner 3 Output
15,000 BTU (Front Center)
Burner 4 Output
15,000 BTU (Front Center)
Burner 5 Output
13,000 BTU (Back Right)
Burner 6 Output
13,000 BTU (Back Left)
Burner 7 Output
13,000 BTU (Back Center 2)
Burner 8 Output
13,000 BTU (Back Center)
Oven Features
Digital Temperature Display
Yes
Convection
Yes
Convection Type
True European
Sabbath Mode
Yes
Self-Cleaning
Yes
Self-Cleaning Type
High Heat
Steam Clean
No
Racks
4
Glide Rack(s)
Yes
Temperature Probe
Yes
Broiler
Yes
Broiler Pan Included
Yes
Interior Oven Light
Yes
Removable Door
Yes
Timer
Yes
Delay Bake
Yes
Fast Preheat
Yes
Proof Mode
Yes
Air Fry
Yes
Sous Vide
No
Technical Details
Amps
50
Voltage
240 Volts
Star-K Certified
Yes
ADA Compliant
Yes
LP Conversion
No
GTIN
UPC
822843829705
Product Dimensions
Width
47 7/8"
Depth
29 1/8"
Depth (excluding handles)
29 1/8"
Height
35 3/4" - 36 3/4"
Oven Performance
Main oven - True convection power
2500W
Broil
3600W
Accessories
Square handle option
AH-R48
Shabbos Compliance
Certification
STAR-K
Requires Shabbos Keeper
No
Safety
ADA compliant
Yes
AH-R48 Handle Dimensions
Height
2 9/16"
Depth
1 11/16"
Length - Vertical Handle
N/A
Length - Horizontal Handle
31 11/16" (RH Door), 15 39/64" (LH Door)
