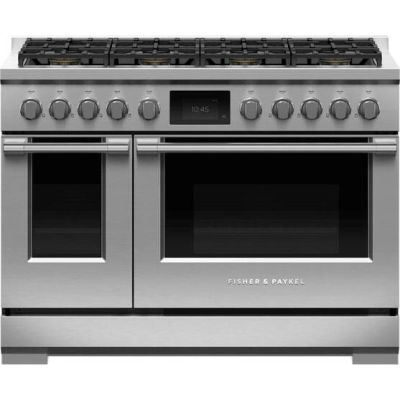

About the Fisher Paykel RDV3488N
- 48 Inch Freestanding Professional Dual Fuel Smart Range with 8 Sealed Dual Flow Burners™
- Dual Oven
- 6.9 Cu. Ft. Total Oven Capacity
- Continuous Grates
- Pyrolytic Self-Clean
- Telescopic Sliding Shelves
- 15 Main Oven Functions: Natural Gas
Brand:
Style:
Freestanding
Width:
47 7/8"
Height:
36 3/4"
Depth:
29 1/8"
Capacity:
4.8 Cu. Ft.
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Dual Fuel
Volts:
240 Volts
Amps:
50
Key Features
8 Sealed Dual Flow Burners™
- Sealed Dual Flow Burners™ deliver rangetop power up to 19,000 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
Dual Oven with 6.9 Cu. Ft. Total Oven Capacity
- Two independently operating cavities provide a large total capacity of 4.8 cu. ft. in the main cavity and 2.1 cu. ft. in the secondary.
Continuous Grates
- Slide pots and pans easily around the surface to a different burner.
Pyrolytic Self-Clean
- The self-clean function reduces grease and food residue to an easily removable light ash and the cooktop simply needs a quick wipe to keep it looking good as new.
Telescopic Sliding Shelves
- The telescopic sliding shelf slides back and forth making it safe and easy to move trays in and out of the oven and can be easily removed to change position for cooking or complete removal for cleaning.
15 Main Oven Functions
- The main oven features 15 functions, including bake, clean, convection bake, convection broil, self cleaning, and true convection.
Accessories Included
- Flat vent trim
Manuals & Downloads
RDV3488N Specification Sheet
Specifications
Safety
ADA compliant
Yes
Recommended Back Guards Ventilation
Recommended hood
HCB48-12_N (48" Professional Range Hood, Dual Blower)
Non-combustible situation
BGRV2-3048 / BGRV2-1248
Combustible situation
BGRV3-3048H
Product Dimensions
Height
35 3/4" - 36 3/4"
Depth
29 1/8"
Width
47 7/8"
Gas Requirements
Supply Pressure (natural gas)
6" to 9" W.C
Fitting and pipe
1/2 NPT, min. 5/8" âˆ... flex line
Power Requirements
Supply frequency
60Hz
Rated current
50A
Amperage
50A
Oven Performance
Main oven - True convection power
2500W
Broil
3600W
Bake power
4600
Technical Details
ADA Compliant
Yes
Amps
50
Voltage
240 Volts
Star-K Certified
Yes
LP Conversion
No
Oven Features
Proof Mode
Yes
Air Fry
Yes
Fast Preheat
Yes
Timer
Yes
Delay Bake
Yes
Sous Vide
No
Digital Temperature Display
Yes
Convection
Yes
Convection Type
True European
Sabbath Mode
Yes
Self-Cleaning
Yes
Self-Cleaning Type
High Heat
Steam Clean
No
Racks
4
Glide Rack(s)
Yes
Temperature Probe
Yes
Broiler
Yes
Broiler Pan Included
Yes
Interior Oven Light
Yes
Removable Door
Yes
Gas Cooktop Features
French Top
No
Dishwasher Safe Grates
Yes
Grill
No
Griddle
No
Continuous Grates
Yes
Cooktop Accessory
No Accessory
Shabbos Compliance
Certification
STAR-K
Requires Shabbos Keeper
No
Appearance
Stainless Steel Handle
No
Fingerprint Resistant
No
Fuel Type
Dual Fuel
Fuel Subtype
Natural Gas
Style
Freestanding
Color
Stainless Steel
Cooktop
Sealed Burner
Cooktop Control Type
Knobs
Oven Control Type
Digital and Knobs
Viewing Window
Yes
Double Oven
Yes
Drawer
None
Clock
Yes
Product Information
Brand
Fisher & Paykel
Model
RDV3488N
MPN
RDV3-488-N
Warranty Terms
2 years ? Fisher & Paykel appliances are backed by a limited two-year warranty. For full warranty details visit https://www.fisherpaykel.com/us/help-and-support/warranty-information#Limite
Dimensions
Width
47 7/8 Inch
Depth
29 1/8 Inch
Height
36 3/4 Inch
Exterior Width
48 Inch
Smart
WiFi
Yes
Smart Accessory Required
No
Capacity
Number of Burners
8
Primary Oven Capacity
4.8 Cu. Ft.
Secondary Oven Capacity
2.1 Cu. Ft.
Burner Output
Simmer Burner
Yes
Power Burner
Yes
Burner 1 Output
23,500 BTU (Front Left)
Burner 2 Output
23,500 BTU (Front Right)
Burner 3 Output
18,500 BTU (Back Center 2)
Burner 4 Output
18,500 BTU (Back Center)
Burner 5 Output
18,500 BTU (Back Left)
Burner 6 Output
18,500 BTU (Back Right)
Burner 7 Output
18,500 BTU (Front Center)
Burner 8 Output
18,500 BTU (Front Center 2)
GTIN
UPC
822843829699
Oven Features
Electronic oven control
Yes
Concealed element
Yes
Titanium coated, illuminated metal dials
Yes
Internal light
Yes
Full-extension telescopic sliding shelves
Yes
Controls
Wi-Fi connectivity
Yes
Tilting touch screen interface
Yes
Sabbath mode
Yes
Recipe and food-based functions
Yes
Precise cooking with food probe
Yes
Multi-language interface
Yes
Metal illuminated dials
Yes
High-resolution display
Yes
Electric circuit
4 wire
Dial with illuminated halo
Yes
Dual control oven dials
Yes
Rangetop Features
Sealed range top
Yes
Vent trim included
Yes
Sealed Dual Flow Burners™
8
Cleaning
Pyrolytic self-clean
Yes
Easy clean porcelain basepan
yes
Capacity
Total capacity
6.9 cu. ft.
Shelf positions
5
Burner Ratings
Total cooktop power
158,000 BTU
Power front left
23,500 BTU
Power front right
23,500 BTU
Power front centre (2)
18,500 BTU
Power front centre
18,500 BTU
Power back right
18,500 BTU
Power back left
18,500 BTU
Power back centre (2)
18,500 BTU
Power back centre
18,500 BTU
Maximum burner power
23,500 BTU
AH-R48 Handle Dimensions
Length - Horizontal Handle
31 11/16" (RH Door), 15 39/64" (LH Door)
Height
2 9/16"
Depth
1 11/16"
Length - Vertical Handle
N/A
Accessories
Square handle option
AH-R48
Secondary Oven Functions
Warm
Yes
Pizza bake
Yes
Pastry bake
Yes
Number of secondary oven functions
11
Maxi broil
Yes
Convection broil
Yes
Classic bake
Yes
Bake
Yes
Air fry
Yes
Roast
Yes
Rapid proof
Yes
Convection bake
Yes
Secondary Oven Features
Internal light
Yes
Electronic oven control
Yes
Concealed element
Yes
Food probe
Yes
3/4 Extension racks
2
Oven Functions
Warm
Yes
Pastry bake
Yes
Dehydrate
Yes
General
Manufacturer
Fisher Paykel
